iglidur M260
®
+120°C
40MPa

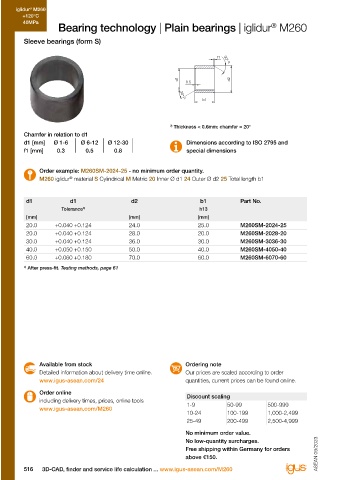

Bearing technology | Plain bearings | iglidur M260
®
Sleeve bearings (form S)

f1 30°

d1 0.5 d2

30°
b1

2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Dimensions according to ISO 2795 and
f1 [mm] 0.3 0.5 0.8 special dimensions

Order example: M260SM-2024-25 - no minimum order quantity.
M260 iglidur material S Cylindrical M Metric 20 Inner Ø d1 24 Outer Ø d2 25 Total length b1
®

d1 d1 d2 b1 Part No.
Tolerance 3) h13
[mm] [mm] [mm]
20.0 +0.040 +0.124 24.0 25.0 M260SM-2024-25
20.0 +0.040 +0.124 28.0 20.0 M260SM-2028-20
30.0 +0.040 +0.124 36.0 30.0 M260SM-3036-30
40.0 +0.050 +0.150 50.0 40.0 M260SM-4050-40
60.0 +0.060 +0.180 70.0 60.0 M260SM-6070-60
3) After press-fit. Testing methods, page 61

Available from stock Ordering note
Detailed information about delivery time online. Our prices are scaled according to order
www.igus-asean.com/24 quantities, current prices can be found online.
Order online Discount scaling
including delivery times, prices, online tools 1-9 50-99 500-999
www.igus-asean.com/M260
10-24 100-199 1,000-2,499
25-49 200-499 2,500-4,999
No minimum order value.
No low-quantity surcharges.
Free shipping within Germany for orders
above €150. ASEAN 09/2023 ASEAN 09/2023
