Bearing technology | Plain bearings | igutex ®

Plain bearing materials for heavy-duty applications

The igutex plain bearings for high load combine high wear resistance with the ability to withstand high (static) loads,
®
shocks and edge loads.
®
For special mechanical strength, igutex bearings are woven from fibre composites enabling even higher strength than
fibre-reinforced injection-moulded bearings made of thermoplastics.

Online product finder Online service life calculation
www.igus-asean.com/iglidur-finder www.igus-asean.com/iglidur-expert

The robust all-rounder

For pivoting applications under

Temperature [°C] 123) +120 – +
Surface pressure [MPa] 124) 200 – + extreme loads

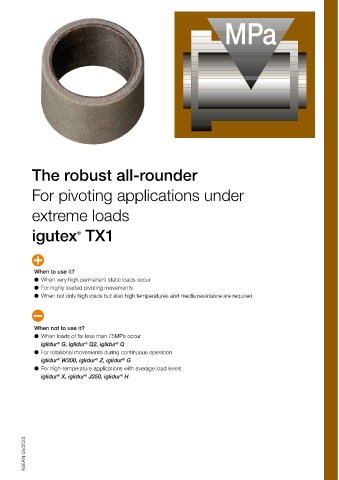

igutex TX1
®
Coefficient of friction [µ] 125) 0.37 – + ®
The robust all-rounder igutex TX1
Wear [µm/km] 125) 7.10 – +
Price index – +

Temperature [°C] 123) +130 – +
When to use it?
Surface pressure [MPa] 124) 180 – + ● When very high permanent static loads occur
igutex TX2 ● For highly loaded pivoting movements
®
Coefficient of friction [µ] 125) 0.31 – +
The technical shafts specialist ● When not only high loads but also high temperatures and media resistance are required
Wear [µm/km] 125) 5.80 – +

Price index – +
Temperature [°C] 123) +130 – + When not to use it?
● When loads of far less than 75MPa occur
124)
®
igutex TX3 Surface pressure [MPa] 180 – + iglidur G, iglidur Q2, iglidur Q
®
®
®
The endurance runner for the Coefficient of friction [µ] 125) 0.28 – + ● For rotational movements during continuous operation
®
®
®
highest loads Wear [µm/km] 125) 2.00 – + iglidur W300, iglidur Z, iglidur G
● For high-temperature applications with average load levels
Price index – + iglidur X, iglidur J350, iglidur H
®
®
®

ASEAN 09/2023 ASEAN 09/2023
123) Upper long-term application temperature 124) Max. recommended surface pressure at +20°C 125) Best pairing for p = 1 MPa,
v = 0.3m/s, rotating
