iglidur F iglidur F
®
®
+140°C +140°C
105MPa 105MPa
Bearing technology | Plain bearings | iglidur F Bearing technology | Plain bearings | iglidur F
®
®

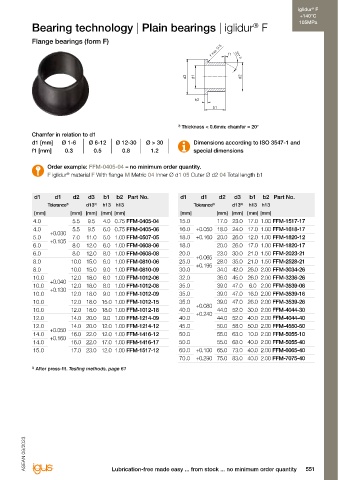

Sleeve bearings (form S) Flange bearings (form F)
r max. 0.5
f1 30° f1 30°

d1 0.5 d2 d3 d1 d2

30°
b1 b2
b1

2) Thickness < 0.6mm: chamfer = 20° 2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1 Chamfer in relation to d1
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 3547-1 and d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 3547-1 and
f1 [mm] 0.3 0.5 0.8 1.2 special dimensions f1 [mm] 0.3 0.5 0.8 1.2 special dimensions

Order example: FSM-0203-03 – no minimum order quantity. Order example: FFM-0405-04 – no minimum order quantity.
F iglidur material S Cylindrical M Metric 02 Inner Ø d1 03 Outer Ø d2 03 Total length b1 F iglidur material F With flange M Metric 04 Inner Ø d1 05 Outer Ø d2 04 Total length b1
®
®
d1 d1 d2 b1 Part No. d1 d1 d2 b1 Part No. d1 d1 d2 d3 b1 b2 Part No. d1 d1 d2 d3 b1 b2 Part No.
Tolerance 3) h13 Tolerance 3) h13 Tolerance 3) d13 3) h13 h13 Tolerance 3) d13 3) h13 h13
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
2.0 +0.020 3.5 3.0 FSM-0203-03 18.0 +0.050 20.0 12.0 FSM-1820-12 4.0 5.5 9.5 4.0 0.75 FFM-0405-04 15.0 17.0 23.0 17.0 1.00 FFM-1517-17
3.0 +0.080 4.5 3.0 FSM-0304-03 18.0 +0.160 20.0 15.0 FSM-1820-15 4.0 +0.030 5.5 9.5 6.0 0.75 FFM-0405-06 16.0 +0.050 18.0 24.0 17.0 1.00 FFM-1618-17
4.0 5.5 4.0 FSM-0405-04 18.0 20.0 20.0 FSM-1820-20 5.0 +0.105 7.0 11.0 5.0 1.00 FFM-0507-05 18.0 +0.160 20.0 26.0 12.0 1.00 FFM-1820-12
5.0 7.0 5.0 FSM-0507-05 20.0 22.0 14.5 FSM-2022-14 6.0 8.0 12.0 6.0 1.00 FFM-0608-06 18.0 20.0 26.0 17.0 1.00 FFM-1820-17
5.0 +0.030 7.0 8.0 FSM-0507-08 20.0 22.0 20.0 FSM-2022-20 6.0 8.0 12.0 8.0 1.00 FFM-0608-08 20.0 +0.065 23.0 30.0 21.0 1.50 FFM-2023-21
6.0 +0.105 8.0 6.0 FSM-0608-06 20.0 23.0 15.0 FSM-2023-15 8.0 10.0 15.0 6.0 1.00 FFM-0810-06 25.0 +0.195 28.0 35.0 21.0 1.50 FFM-2528-21
6.0 8.0 8.0 FSM-0608-08 20.0 23.0 20.0 FSM-2023-20 8.0 10.0 15.0 9.0 1.00 FFM-0810-09 30.0 34.0 42.0 26.0 2.00 FFM-3034-26
6.0 8.0 10.0 FSM-0608-10 22.0 +0.065 25.0 15.0 FSM-2225-15 10.0 +0.040 12.0 18.0 6.0 1.00 FFM-1012-06 32.0 36.0 45.0 26.0 2.00 FFM-3236-26
6.0 8.0 13.8 FSM-0608-13 25.0 +0.195 28.0 20.0 FSM-2528-20 10.0 12.0 18.0 8.0 1.00 FFM-1012-08 35.0 39.0 47.0 6.0 2.00 FFM-3539-06
7.0 9.0 10.0 FSM-0709-10 28.0 32.0 20.0 FSM-2832-20 10.0 +0.130 12.0 18.0 9.0 1.00 FFM-1012-09 35.0 39.0 47.0 16.0 2.00 FFM-3539-16
7.0 9.0 12.0 FSM-0709-12 28.0 32.0 30.0 FSM-2832-30 10.0 12.0 18.0 15.0 1.00 FFM-1012-15 35.0 +0.080 39.0 47.0 26.0 2.00 FFM-3539-26
8.0 10.0 8.0 FSM-0810-08 30.0 34.0 20.0 FSM-3034-20 10.0 12.0 18.0 18.0 1.00 FFM-1012-18 40.0 +0.240 44.0 52.0 30.0 2.00 FFM-4044-30
8.0 +0.040 10.0 10.0 FSM-0810-10 30.0 34.0 30.0 FSM-3034-30 12.0 14.0 20.0 9.0 1.00 FFM-1214-09 40.0 44.0 52.0 40.0 2.00 FFM-4044-40
8.0 +0.130 10.0 15.0 FSM-0810-15 30.0 34.0 40.0 FSM-3034-40 12.0 +0.050 14.0 20.0 12.0 1.00 FFM-1214-12 45.0 50.0 58.0 50.0 2.00 FFM-4550-50
10.0 12.0 6.0 FSM-1012-06 32.0 36.0 30.0 FSM-3236-30 14.0 +0.160 16.0 22.0 12.0 1.00 FFM-1416-12 50.0 55.0 63.0 10.0 2.00 FFM-5055-10
10.0 12.0 9.0 FSM-1012-09 35.0 39.0 30.0 FSM-3539-30 14.0 16.0 22.0 17.0 1.00 FFM-1416-17 50.0 55.0 63.0 40.0 2.00 FFM-5055-40
10.0 12.0 10.0 FSM-1012-10 35.0 +0.080 39.0 40.0 FSM-3539-40 15.0 17.0 23.0 12.0 1.00 FFM-1517-12 60.0 +0.100 65.0 73.0 40.0 2.00 FFM-6065-40
12.0 14.0 10.0 FSM-1214-10 40.0 +0.240 44.0 30.0 FSM-4044-30 70.0 +0.290 75.0 83.0 40.0 2.00 FFM-7075-40
12.0 14.0 15.0 FSM-1214-15 40.0 44.0 50.0 FSM-4044-50 3) After press-fit. Testing methods, page 61
13.0 +0.050 15.0 20.0 FSM-1315-20 45.0 50.0 50.0 FSM-4550-50
14.0 +0.160 16.0 15.0 FSM-1416-15 50.0 55.0 40.0 FSM-5055-40
15.0 17.0 15.0 FSM-1517-15 55.0 +0.100 60.0 50.0 FSM-5560-50
15.0 17.0 20.0 FSM-1517-20 60.0 +0.290 65.0 60.0 FSM-6065-60
16.0 18.0 15.0 FSM-1618-15

3) After press-fit. Testing methods, page 61
