iglidur iglidur
®
®
®
®

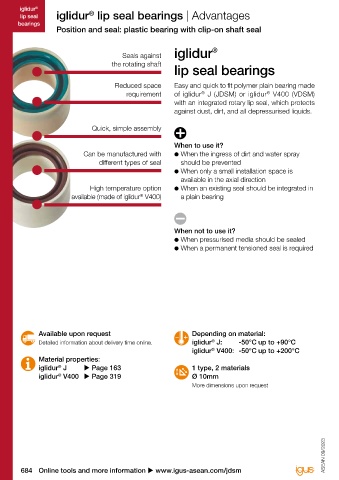

lip seal iglidur lip seal bearings | Advantages iglidur lip seal bearings | Product range lip seal
bearings bearings
Position and seal: plastic bearing with clip-on shaft seal Lip seal sleeve bearings (form S)
®
Seals against iglidur Order key
the rotating shaft Type Dimensions [mm]
lip seal bearings

Reduced space Easy and quick to fit polymer plain bearing made
requirement of iglidur J (JDSM) or iglidur V400 (VDSM)
®
®
with an integrated rotary lip seal, which protects
against dust, dirt, and all depressurised liquids.

Quick, simple assembly JDSM VDSM iglidur ® material

When to use it? 30° Form Metric Inner Ø Outer Ø Total length
Can be manufactured with ● When the ingress of dirt and water spray Seal
different types of seal should be prevented
● When only a small installation space is Material:
available in the axial direction d1 iglidur J u Page 163
®
High temperature option ● When an existing seal should be integrated in iglidur V400 u Page 319
®
available (made of iglidur V400) a plain bearing
®

d2 b3
b1
When not to use it?
● When pressurised media should be sealed Dimensions [mm]
● When a permanent tensioned seal is required d1 d1 tolerance 3) d2 b1 b3 f Part No.
E11 Ø h13
10 +0.025 +0.135 15 14 10 1 JDSM-1015-14
10 +0.025 +0.135 15 14 10 1 VDSM-1015-14
3) After press-fit. Testing methods u Page 61

Available upon request Depending on material: Please contact us if you want to combine your seal with an iglidur plain bearing.
®
®
Detailed information about delivery time online. iglidur J: -50°C up to +90°C We will support you with the design, will check the integration and create an appropriate proposal.
iglidur V400: -50°C up to +200°C
®
Material properties:
®
iglidur J u Page 163 1 type, 2 materials
iglidur V400 u Page 319 Ø 10mm
®
More dimensions upon request

ASEAN 09/2023 ASEAN 09/2023

684 Online tools and more information u www.igus-asean.com/jdsm 3D CAD files, prices and delivery time online u www.igus-asean.com/jdsm 685
