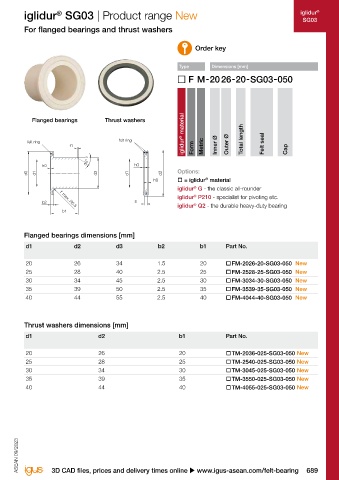

iglidur iglidur SG03 | Advantages New iglidur SG03 | Product range New iglidur
®
®
SG03 SG03
Clean bearings even in applications with dirt and dust For flanged bearings and thrust washers

Maintenance-free Plain bearings with Order key

High running felt seal Type Dimensions [mm]

performance The felt seal for SG03 plain bearing prevents the

ingress of dirt and dust into the bearing point
and thus protects the bearing itself and the shaft
The shaft is protected against wear and premature failure.
against wear even more Flanged bearings Thrust washers
effectively as dirt cannot
ingress the bearing point felt ring iglidur ® material Total length
When to use it? felt ring f1 Form Metric Inner Ø Outer Ø Felt seal Cap

● When the ingress of dirt should be prevented 30° ²
When a 2 in 1 solution (bearing and seal) is
● required h0 h0
Sleeve heavy-duty d3 d1 d2 d1 d2 Options: ®
plain bearing h0  = iglidur material
®
iglidur TX2 r max. iglidur G - the classic all-rounder
®
iglidur P210 - specialist for pivoting etc.
®
When not to use it? b2 R0 5 s iglidur Q2 - the durable heavy-duty bearing
®
.
● When liquid seal is required b1
● When high axial forces act on the flange
Flanged bearings dimensions [mm]
d1 d2 d3 b2 b1 Part No.

20 26 34 1.5 20  FM-2026-20-SG03-050 New
25 28 40 2.5 25  FM-2528-25-SG03-050 New
30 34 45 2.5 30  FM-3034-30-SG03-050 New
35 39 50 2.5 35  FM-3539-35-SG03-050 New
40 44 55 2.5 40  FM-4044-40-SG03-050 New

Available from stock Material properties: Thrust washers dimensions [mm]
®
Detailed information about delivery time online. iglidur G u Page 85 d1 d2 b1 Part No.
®
Sleeve bearing upon request iglidur P210 u Page 121
®
iglidur Q2 u Page 477 20 26 20  TM-2036-025-SG03-050 New
25 28 25  TM-2540-025-SG03-050 New
30 34 30  TM-3045-025-SG03-050 New
35 39 35  TM-3550-025-SG03-050 New
40 44 40  TM-4055-025-SG03-050 New
