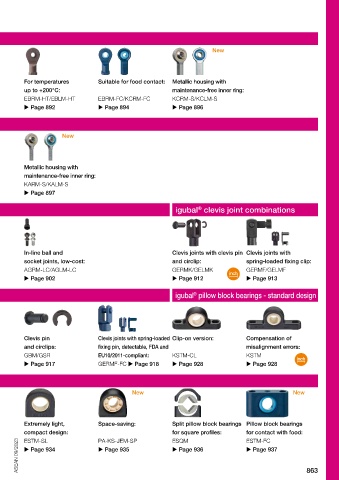

igubal bearing elements | Product overview
®

igubal rod end bearings with female thread
®
New

Selectable spherical ball Integrated lock nut Classic design: Space-saving, selectable For temperatures Suitable for food contact: Metallic housing with
material: for easy assembly: spherical ball material: up to +200°C: maintenance-free inner ring:
KCRM/KCLM KBRM-CL/KBLM-CL KBRM/KBLM EBRM/EBLM EBRM-HT/EBLM-HT EBRM-FC/KCRM-FC KCRM-S/KCLM-S
u Page 878 u Page 880 u Page 882 u Page 888 u Page 892 u Page 894 u Page 896

igubal rod end bearings with male thread
®
New

For higher loads: Classic design: Space-saving, selectable For temperatures Metallic housing with
spherical ball material: up to +200°C: maintenance-free inner ring:
KARM-CL/KALM-CL KARM/KALM EARM/EALM EARM-HT/EALM-HT KARM-S/KALM-S
u Page 884 u Page 886 u Page 890 u Page 893 u Page 897

igubal angled and in-line ball and socket joints igubal clevis joint combinations
®
®

Angled ball and socket Angled ball and Easy assembly In-line ball and socket In-line ball and Clevis joints with clevis pin Clevis joints with
joints: socket joints, low-cost: and disassembly: joint: socket joints, low-cost: and circlip: spring-loaded fixing clip:
WGRM/WGLM WGRM-LC/WGLM-LC WGRM-DE/WGLM-DE AGRM/AGLM AGRM-LC/AGLM-LC GERMK/GELMK GERMF/GELMF
u Page 898 u Page 899 u Page 900 u Page 901 u Page 902 u Page 912 u Page 913

igubal clevis joints combinations and single components igubal pillow block bearings - standard design
®
®

Clevis joint combination: Clevis joints with Clevis joint, Spring-loaded fixing clip: Clevis pin Clevis joints with spring-loaded Clip-on version: Compensation of
spring-loaded fixing clip: high rigidity: and circlips: fixing pin, detectable, FDA and misalignment errors:
GERMKE/GELMKE GERMFE/GELMFE GERM/GELM GEFM GBM/GSR EU10/2011-compliant: KSTM-CL KSTM
u Page 914 u Page 915 u Page 908 u Page 916 u Page 917 GERMF-FC u Page 918 u Page 928 u Page 928

igubal pillow block bearings for high radial loads
®
New New

Easy to disassemble, Easy installation: For quick assembly and low Split housings with Extremely light, Space-saving: Split pillow block bearings Pillow block bearings
split housing and ball: total moisture absorption: parallel hole: compact design: for square profiles: for contact with food:
KSTM-GT ESTM ESTM-GT-GT ESTM-GT ESTM-SL PA-KS-JEM-SP ESQM ESTM-FC
u Page 930 u Page 931 u Page 932 u Page 933 ASEAN 09/2023 ASEAN 09/2023 u Page 934 u Page 935 u Page 936 u Page 937

862 863
