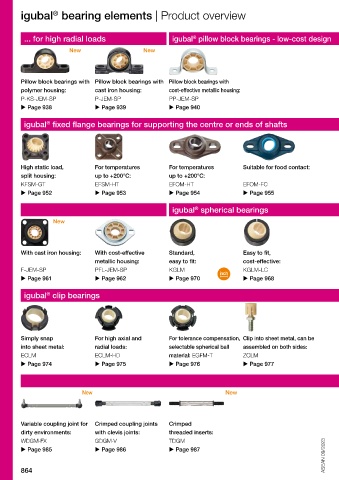

igubal bearing elements | Product overview
®

... for high radial loads igubal pillow block bearings - low-cost design igubal fixed flange bearings for supporting the centre or ends of shafts
®
®
New New

Pillow block bearings with Pillow block bearings with Pillow block bearings with Easy installation: For high radial loads: Universal and quick Universal and quick
polymer housing: cast iron housing: cost-effective metallic housing: assembly, female thread: assembly, female thread:
P-KS-JEM-SP P-JEM-SP PP-JEM-SP EFOM EFSM GFSM-IG GFSM-AG
u Page 938 u Page 939 u Page 940 u Page 946 u Page 948 u Page 950 u Page 951

igubal fixed flange bearings for supporting the centre or ends of shafts
®
New New New New

High static load, For temperatures For temperatures Suitable for food contact: With polymer housing: With polymer housing: Compact fixed flange With cast iron housing:
split housing: up to +200°C: up to +200°C: bearing: FL208-30-KS
KFSM-GT EFSM-HT EFOM-HT EFOM-FC FL-KS-JEM-SP F-KS-JEM-SP F208-30-KS FL-JEM-SP
u Page 952 u Page 953 u Page 954 u Page 955 u Page 956 u Page 957 u Page 958 u Page 960

igubal spherical bearings
®
New New

With cast iron housing: With cost-effective Standard, Easy to fit, For extremely narrow Cost-effective, selectable Space-saving: FC spherical bearings:
metallic housing: easy to fit: cost-effective: installation space: spherical ball material:
F-JEM-SP PFL-JEM-SP KGLM KGLM-LC KGLM-SL EGLM-LC EGLM EGLM-FC
u Page 961 u Page 962 u Page 970 u Page 968 u Page 969 u Page 971 u Page 972 u Page 973

igubal clip bearings igubal double joints and coupling joints
®
®

Simply snap For high axial and For tolerance compensation, Clip into sheet metal, can be Robust plastic: Selectable materials, Selectable materials, Removable,
into sheet metal: radial loads: selectable spherical ball assembled on both sides: individual dimensions: individual dimensions: selectable materials:
ECLM ECLM-HD material: EGFM-T ZCLM EGZM KDGM WDGM WDGM-DE
u Page 974 u Page 975 u Page 976 u Page 977 u Page 978 u Page 980 u Page 982 u Page 984

igubal spherical thrust bearings
®
New New

Variable coupling joint for Crimped coupling joints Crimped Resistant to edge loads:
dirty environments: with clevis joints: threaded inserts: SAM
WDGM-FX GDGM-V TDGM u Page 992
u Page 985 u Page 986 u Page 987 ASEAN 09/2023 ASEAN 09/2023

864 865
