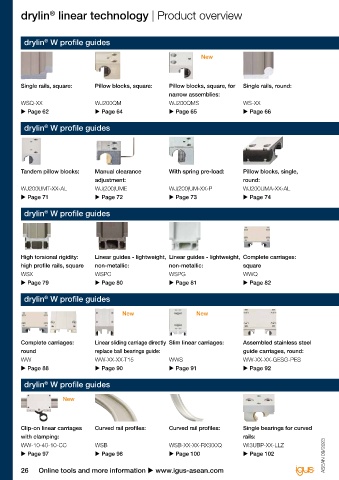

drylin  linear technology | Product overview
                   ®



          drylin  W profile guides
                 ®

                                                                        New                                                                                                                                               New



        Single rails, square:     Pillow blocks, square:    Pillow blocks, square, for   Single rails, round:                    Single rails, round       Pillow blocks, round:     Pillow blocks, round      Pillow blocks, single, round,
                                                            narrow assemblies:                                                   made of stainless steel:                            made of stainless steel:  made from solid plastic:
        WSQ-XX                    WJ200QM                   WJ200QMS                  WS-XX                                      WS-XX-ES-(FG)             WJ200UM                   WJUM-XX-ES-(FG)           WJBMP-01-10
        u Page 62                 u Page 64                 u Page 65                 u Page 66                                  u Page 68                 u Page 69                 u Page 69                 u Page 70

          drylin  W profile guides
                 ®
                                                                                                                                           New                        New                      New




        Tandem pillow blocks:     Manual clearance          With spring pre-load:     Pillow blocks, single,                     Pillow blocks, round      Pillow blocks, round,     Pillow blocks, tandem, round,  Double rails:
                                  adjustment:                                         round:                                     made of stainless steel:  for narrow assemblies:    for narrow assemblies:    square
        WJ200UMT-XX-AL            WJ(200)UME                WJ(200)UM-XX-P            WJ200UMA-XX-AL                             WXUMA-01-10-ES            WJ200UMS                  WJ200UMTS                 WSQ
        u Page 71                 u Page 72                 u Page 73                 u Page 74                                  u Page 75                 u Page 76                 u Page 77                 u Page 78


          drylin  W profile guides
                 ®






        High torsional rigidity:    Linear guides - lightweight,  Linear guides - lightweight,  Complete carriages:              Mono-slide carriages:     Double rails:             High torsional rigidity:    Round double rails,
        high profile rails, square   non-metallic:          non-metallic:             square                                                               round                     high profile rails, round   made of stainless steel:
        WSX                       WSPC                      WSPG                      WWQ                                        WWC                       WS-XX-XX                  WSX                       WS-XX-XX-ES-(FG)
        u Page 79                 u Page 80                 u Page 81                 u Page 82                                  u Page 83                 u Page 84                 u Page 86                 u Page 87

          drylin  W profile guides
                 ®

                                            New                       New                                                                     New                            New                         New                    New



        Complete carriages:       Linear sliding carriage directly  Slim linear carriages:  Assembled stainless steel            Mono-slide carriages,     Linear carriages with wear  Linear carriages with   Clip-on linear carriages:
        round                     replace ball bearings guide:                        guide carriages, round:                    with snap mechanism:      measurement, round:       integrated manual clamp:
        WW                        WW-XX-XX-T15              WWS                       WW-XX-XX-GESG-PES                          WWC-06-30-06-LM           WW-XX-XX-IS-LED           WW-XX-XX-XX-HKX           WW-10-40-10-TC
        u Page 88                 u Page 90                 u Page 91                 u Page 92                                  u Page 93                 u Page 94                 u Page 95                 u Page 96

          drylin  W profile guides
                 ®

                       New



        Clip-on linear carriages    Curved rail profiles:   Curved rail profiles:     Single bearings for curved                 Carriage for curved rails:  Double rails with       Complete carriages        Hybrid slider carriages with
        with clamping:                                                                rails:                                                               machine recesses:         for slider:               four double roller bearings:
        WW-10-40-10-CC            WSB                       WSB-XX-XX-RX300Q          WI3UBP-XX-LLZ                              WWB                       WS(Q)-XX-CAM              WW-XX-SL                  WWH-XX-SL
        u Page 97                 u Page 98                 u Page 100                u Page 102                   ASEAN 09/2023  ASEAN 09/2023  u Page 103  u Page 104              u Page 105                u Page 106
