Fit and forget

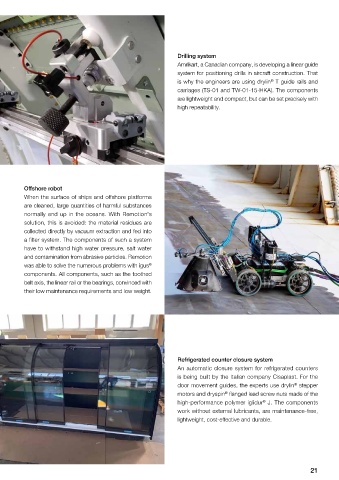

 For all tasks - the appropriate solution in any batch size from stock  Drilling system
 Different industries need different solutions. From mechanical engineering, automotive assembly or medical technology, to   Amrikart, a Canadian company, is developing a linear guide
 the robotics industry - igus  offers customised solutions for specific applications. igus  possesses many years of experience   system for positioning drills in aircraft construction. That
 ®
 ®
 in most branches of industry and has competent specialists that can be contacted when necessary. If your industry is not   is why the engineers are using drylin  T guide rails and
                                                                                                ®
 listed, please let us know. We're here to help.               carriages (TS-01 and TW-01-15-HKA). The components
                                                               are lightweight and compact, but can be set precisely with
 Go online and find solutions for almost every branch of industry  high repeatability.
 u www.igus-asean.com/industry













 High-pressure cleaner for municipal vehicles  Offshore robot
 Cleaning using water under high pressure and whipping up   When the surface of ships and offshore platforms
 dirt poses enormous challenges. To meet this challenge,   are cleaned, large quantities of harmful substances
 the German company Fiedler Maschinenbau und   normally end up in the oceans. With Remotion's
 Technikvertrieb GmbH has developed the FSB 1.500 / 2.600   solution, this is avoided: the material residues are
 double spray boom, which is mounted in front of the vehicle   collected directly by vacuum extraction and fed into
 which is equipped with side nozzles, a middle section, and   a filter system. The components of such a system
 electronically switchable high-pressure underfloor nozzles for   have to withstand high water pressure, salt water
 cleaning surfaces with high water pressure. The engineers   and contamination from abrasive particles. Remotion
 use a drylin  W double rail WS and drylin  W pillow block   was able to solve the numerous problems with igus
 ®
 ®
                                                     ®
 for the telescopic function. It is used by municipalities and   components. All components, such as the toothed
 municipal service providers to clean dirty streets, pavements   belt axis, the linear rail or the bearings, convinced with
 and squares.
          their low maintenance requirements and low weight.









 Filling systems for reaction vessels
 The vessels are transported via a vibrating conveyor
 and brought to a pick-up position. Grippers from the          Refrigerated counter closure system
 top remove vessels one by one and bring them to a             An automatic closure system for refrigerated counters
 pump unit for filling before they are brought for sealing.    is being built by the Italian company Cisaplast. For the
 After closing, the gripper opens and the vessel drops         door movement guides, the experts use drylin  stepper
                                                                                                        ®
 gently into the practical pedestal box. The drylin            motors and dryspin  flanged lead screw nuts made of the
 ®
                                                                                ®
 lead screw drives are used for feed mechanisms and            high-performance polymer iglidur  J. The components
                                                                                             ®
 linear movements. For this, the customer combines             work without external lubricants, are maintenance-free,
 an iglidur  W300 trapezoidal lead screw nut with a            lightweight, cost-effective and durable.
 ®
 rolled trapezoidal lead screw made from (stainless
 steel) AISI 304.
