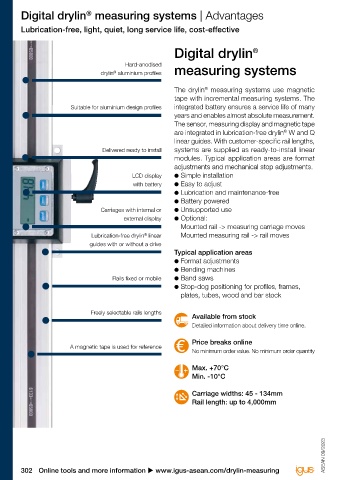

Digital drylin  measuring systems | Advantages                                                                           Digital drylin  measuring systems | Products overview
                               ®
                                                                                                                                                        ®
        Lubrication-free, light, quiet, long service life, cost-effective                                                        Profile guides for almost unlimited design freedom



                                                              Digital drylin
                                                                                          ®
                                             Hard-anodised
                                    drylin  aluminium profiles  measuring systems
                                         ®

                                                              The drylin  measuring systems use magnetic
                                                                         ®
                                                              tape with incremental measuring systems. The
                                                                                                                                       ®
                                                                                                                                                                                            ®
                          Suitable for aluminium design profiles  integrated battery ensures a service life of many              drylin  Q for unsupported structures                 drylin  SLW with integrated measuring sensor
                                                              years and enables almost absolute measurement.                     ● 	Carriage with integrated measuring sensor         ● 	Driven by trapezoidal thread
                                                              The sensor, measuring display and magnetic tape                    ● 	With fixed or flexible adjustable display         ● 	Programmable display
                                                              are integrated in lubrication-free drylin  W and Q                 ● 	Protected magnetic tape                           ● 	Positioning can be freely adjusted and locked
                                                                                                     ®
                                                              linear guides. With customer-specific rail lengths,                u Page 306                                           u Page 307
                                     Delivered ready to install  systems are supplied as ready-to-install linear
                                                              modules. Typical application areas are format
                                                              adjustments and mechanical stop adjustments.
                                               LCD display    ● 	Simple installation
                                                with battery  ● 	Easy to adjust
                                                              ● 	Lubrication and maintenance-free
                                                              ● 	Battery powered
                                    Carriages with internal or   ● 	Unsupported use                                              drylin  W with digital measuring display             drylin  W with fixed measuring display
                                                                                                                                       ®
                                                                                                                                                                                             ®
                                            external display  ● 	 Optional:                                                       	Max. rail length up to 4,000mm                       	Max. rail length: up to 2,000mm
                                                                Mounted rail -> measuring carriage moves                         ●                                                    ●
                                 Lubrication-free drylin  linear    Mounted measuring rail -> rail moves                         ● 	Measuring display attached to the side of the carriage  ● 	Measuring display fixed in place
                                                    ®
                                                                                                                                                                                        	Moving rail with stationary carriage
                                                                                                                                  	Lubrication-free adjusting of the carriage
                                 guides with or without a drive                                                                  ●                                                    ●
                                                                                                                                                                                      u Page 308
                                                                                                                                 u Page 308
                                                              Typical application areas
                                                              ● 	Format adjustments
                                                              ● 	Bending machines
                                        Rails fixed or mobile  ● 	 Band saws
                                                              ● 	 Stop-dog positioning for profiles, frames,
                                                                plates, tubes, wood and bar stock


                                 Freely selectable rails lengths
                                                                    Available from stock
                                                                    Detailed information about delivery time online.
                                                                                                                                 drylin  W with external measuring display            drylin  W for external data output
                                                                                                                                                                                             ®
                                                                                                                                       ®
                                                                    Price breaks online                                          ● 	Carriage with integrated sensor                   ● 	Variable sensor type, output power and cable length
                          A magnetic tape is used for reference
                                                                    No minimum order value. No minimum order quantity            ● 	Flexible positioning of the measuring sensor      ● 	Cable guide and protection through igus  e-chain ®
                                                                                                                                                                                                                           ®
                                                                                                                                 ● 	Including manual clamp                            ● 	1 and 4 edge triggering
                                                                    Max. +70°C                                                   u Page 309                                           u Page 310
                                                                    Min. -10°C

                                                                    Carriage widths: 45 - 134mm                                                                                       Stop motion measuring system with rail scale
                                                                    Rail length: up to 4,000mm
                                                                                                                                                                                      ● 	 econ measuring system based on drylin  pre-load
                                                                                                                                                                                                                          ®
                                                                                                                                                                                         prism slide
                                                                                                                                                                                      ● 	Carriages with individually adjustable pre-load in
                                                                                                                                                                                         4 different strengths
                                                                                                                                                                                        	Including scaling on the rail
                                                                                                                   ASEAN 09/2023  ASEAN 09/2023                                       u Page 311
                                                                                                                                                                                      ●


        302 Online tools and more information u www.igus-asean.com/drylin-measuring                                                      3D CAD files, prices and delivery time online u www.igus-asean.com/drylin-measuring        303
