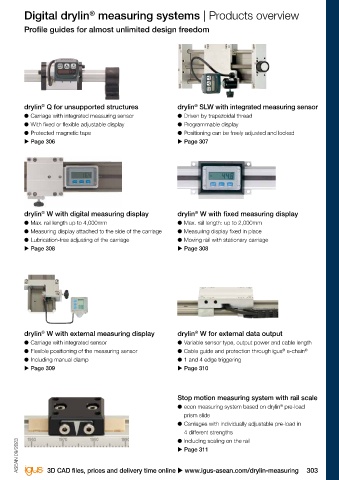

Digital drylin measuring systems | Advantages Digital drylin measuring systems | Products overview
®
®
Lubrication-free, light, quiet, long service life, cost-effective Profile guides for almost unlimited design freedom

Digital drylin
®
Hard-anodised
drylin aluminium profiles measuring systems
®

The drylin measuring systems use magnetic
®
tape with incremental measuring systems. The
®
®
Suitable for aluminium design profiles integrated battery ensures a service life of many drylin Q for unsupported structures drylin SLW with integrated measuring sensor
years and enables almost absolute measurement. ● Carriage with integrated measuring sensor ● Driven by trapezoidal thread
The sensor, measuring display and magnetic tape ● With fixed or flexible adjustable display ● Programmable display
are integrated in lubrication-free drylin W and Q ● Protected magnetic tape ● Positioning can be freely adjusted and locked
®
linear guides. With customer-specific rail lengths, u Page 306 u Page 307
Delivered ready to install systems are supplied as ready-to-install linear
modules. Typical application areas are format
adjustments and mechanical stop adjustments.
LCD display ● Simple installation
with battery ● Easy to adjust
● Lubrication and maintenance-free
● Battery powered
Carriages with internal or ● Unsupported use drylin W with digital measuring display drylin W with fixed measuring display
®
®
external display ● Optional: Max. rail length up to 4,000mm Max. rail length: up to 2,000mm
Mounted rail -> measuring carriage moves ● ●
Lubrication-free drylin linear Mounted measuring rail -> rail moves ● Measuring display attached to the side of the carriage ● Measuring display fixed in place
®
Moving rail with stationary carriage
Lubrication-free adjusting of the carriage
guides with or without a drive ● ●
u Page 308
u Page 308
Typical application areas
● Format adjustments
● Bending machines
Rails fixed or mobile ● Band saws
● Stop-dog positioning for profiles, frames,
plates, tubes, wood and bar stock

Freely selectable rails lengths
Available from stock
Detailed information about delivery time online.
drylin W with external measuring display drylin W for external data output
®
®
Price breaks online ● Carriage with integrated sensor ● Variable sensor type, output power and cable length
A magnetic tape is used for reference
No minimum order value. No minimum order quantity ● Flexible positioning of the measuring sensor ● Cable guide and protection through igus e-chain ®
®
● Including manual clamp ● 1 and 4 edge triggering
Max. +70°C u Page 309 u Page 310
Min. -10°C

Carriage widths: 45 - 134mm Stop motion measuring system with rail scale
Rail length: up to 4,000mm
● econ measuring system based on drylin pre-load
®
prism slide
● Carriages with individually adjustable pre-load in
4 different strengths
Including scaling on the rail
ASEAN 09/2023 ASEAN 09/2023 u Page 311
●
