P. 322

drylin
             ®
                               ®
        carbon       drylin  carbon fibre | Product range
         fibre

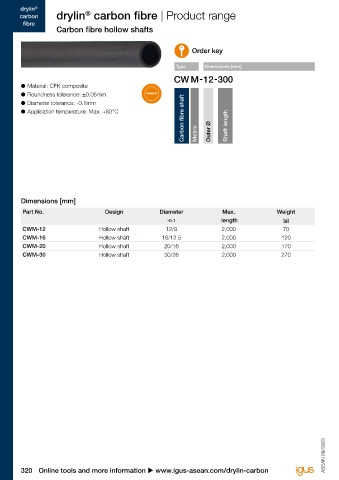

                     Carbon fibre hollow shafts


                                                                    Order key


                                                               Type      Dimensions [mm]


        ● 	Material: CFK composite
        ● 	Roundness tolerance: ±0.05mm             CARBON
                                                                 Carbon fibre shaft  Metric  Outer Ø  Shaft length
        ● 	Diameter tolerance: -0.1mm
        ● 	Application temperature: Max. +80°C

















        Dimensions [mm]

         Part No.                     Design             Diameter              Max.               Weight
                                                            -0.1               length                [g]
         CWM-12                     Hollow shaft           12/9                2,000                70
         CWM-16                     Hollow shaft          16/12.5              2,000                120
         CWM-20                     Hollow shaft           20/16               2,000                170
         CWM-30                     Hollow shaft           30/26               2,000                270





                                                                                                                                 drylin  linear technology -
                                                                                                                                                ®

                                                                                                                                 stainless steel






                                                                                                                                 Temperature-resistant up to +250°C

                                                                                                                                 Corrosion-resistant


                                                                                                                                 Chemical resistance


                                                                                                                                 Ready-to-install linear guides and modules


                                                                                                                                 Lubrication and maintenance-free





                                                                                                                   ASEAN 09/2023  ASEAN 09/2023




        320 Online tools and more information u www.igus-asean.com/drylin-carbon
