carbon drylin carbon fibre | Product range
fibre
Carbon fibre hollow shafts

Order key

Type Dimensions [mm]

● Material: CFK composite
● Roundness tolerance: ±0.05mm CARBON
Carbon fibre shaft Metric Outer Ø Shaft length
● Diameter tolerance: -0.1mm
● Application temperature: Max. +80°C

Dimensions [mm]

Part No. Design Diameter Max. Weight
-0.1 length [g]
CWM-12 Hollow shaft 12/9 2,000 70
CWM-16 Hollow shaft 16/12.5 2,000 120
CWM-20 Hollow shaft 20/16 2,000 170
CWM-30 Hollow shaft 30/26 2,000 270

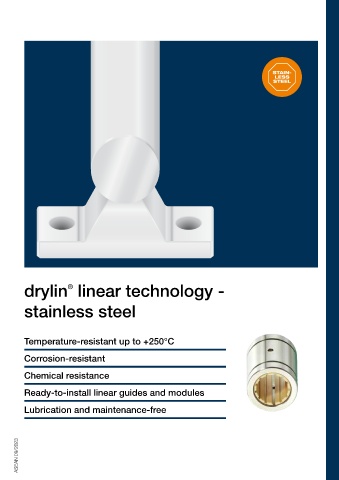

drylin linear technology -
®

stainless steel

Temperature-resistant up to +250°C

Corrosion-resistant

Chemical resistance

Ready-to-install linear guides and modules

Lubrication and maintenance-free
