drylin drylin
®
®
®
®

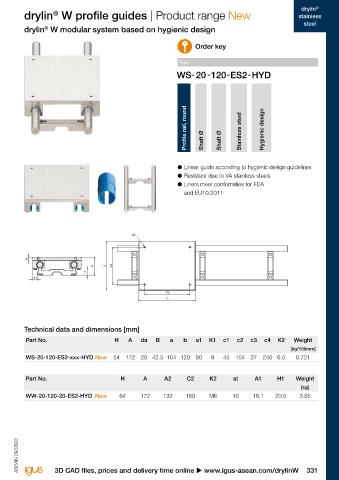

stainless drylin W profile guides | Product range New drylin W profile guides | Product range New stainless
steel steel
drylin W modular system based on hygienic design drylin W modular system based on hygienic design
®
®
Order key Order key
Type Type

Profile rail, round Shaft Ø Stainless steel Hygienic design Profile rail, round Shaft Ø Shaft Ø Stainless steel Hygienic design

● Flexible, supported single rails ● Linear guide according to hygienic design guidelines
● Robust double shaft rails K2 ● Resistant due to VA stainless steels
● Smooth round design without corners ● Liners meet conformities for FDA
● Liner made of iglidur A160 (compliant with FDA and EU10/2011
®
and EU guideline 10/2011 EC)
A A2
B

H
h2 B C2
h1 K2
C
A
H
h2
h1
st
A
H A A2
H1
C6 C4 C5 A1
A4
A3
C2
G1 C6 C4 C5
G2 C
c3 A4
A3 K1 K2 c1
G1
G2 st
c3
K1
Technical data and dimensions [mm] K2 c1 Technical data and dimensions [mm] H1 H
Part No. H A da B h1 h2 a1 G1 A3 c1 c3 c4 K1 K2 G2 Part No. A1 H A da B a b a1 K1 c1 c2 c3 c4 K2 Weight
[kg/100mm]
WS-20-ES2-HYD New 54 56 20 42.5 17 38 80 37 9 45 27 240 9 6.5 20 WS-20-120-ES2-xxx-HYD New 54 172 20 42.5 104 120 80 9 45 154 27 240 6.5 0.721

Part No. H B A3 A4 c1 c3 K2 Weight Part No. H A A2 C2 K2 st A1 H1 Weight
[g] [kg]
WA160UM-01-20-ES2-HYD New 54 42.5 9 16 45 27 6.5 268 WW-20-120-20-ES2-HYD New 64 172 132 160 M6 10 16.1 20.5 3.85

ASEAN 09/2023 ASEAN 09/2023

330 Online tools and more information u www.igus-asean.com/drylinW 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinW 331
