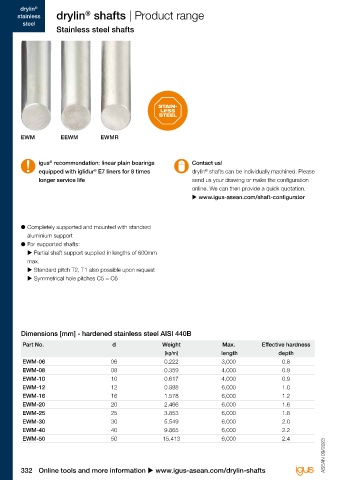

drylin                                                                                                                                                                                                                    drylin
             ®
                                                                                                                                                                                                                                       ®
                                                                                                                                           ®
                               ®
       stainless     drylin  shafts | Product range                                                                              drylin  shafts | Product range                                                                  stainless
         steel                                                                                                                                                                                                                     steel
                     Stainless steel shafts                                                                                      Materials: AISI 440B, AISI 420C, AISI 304, AISI 316Ti
                                                                                                                                                                                             Order key


                                                                                                                                                                                       Type      Size   Options










                                                                                                                                                                                          Steel shaft  Outer Ø  Shaft length


        EWM           EEWM          EWMR                                                                                                                                                      Metric        [mm]


                                                                                                                                                                                      Available shaft materials:
               igus  recommendation: linear plain bearings          Contact us!                                                                                                       AISI 440B, hardened/ground u EWM
                  ®
               equipped with iglidur  E7 liners for 8 times         drylin  shafts can be individually machined. Please                                                               AISI 420C, hardened/ground u EEWM
                                  ®
                                                                         ®
               longer service life                                  send us your drawing or make the configuration                                                                    AISI 304, drawn u EWMR
                                                                    online. We can then provide a quick quotation.                                                                    AISI 316Ti, drawn u EWMS
                                                                    u www.igus-asean.com/shaft-configurator

                                                                                                                                 Dimensions [mm] - hardened stainless steel AISI 420C

                                                                                                                                 Part No.                        d                Weight               Max.          Effective hardness
        ● 	Completely supported and mounted with standard                                                                                                                          [kg/m]              length              depth
           aluminium support                                                                                                     EEWM-06                        06                 0.222               3,000                0.8
        ● 	For supported shafts:                                                                                                 EEWM-08                        08                 0.359               4,000                0.9
           u Partial shaft support supplied in lengths of 600mm                                                                  EEWM-10                        10                 0.617               4,000                0.9
           max.                                                                                                                  EEWM-12                        12                 0.888               6,000                1.0
           u  Standard pitch T2, T1 also possible upon request                                                                   EEWM-16                        16                 1.578               6,000                1.2
          u Symmetrical hole pitches C5 = C6                                                                                     EEWM-20                        20                 2.466               6,000                1.6

                                                                                                                                 EEWM-25                        25                 3.853               6,000                1.8
                                                                                                                                 EEWM-30                        30                 5.549               6,000                2.0
                                                                                                                                 EEWM-40                        40                 9.865               6,000                2.2
                                                                                                                                 EEWM-50                        50                15.413               6,000                2.4


        Dimensions [mm] - hardened stainless steel AISI 440B                                                                     Dimensions [mm] - stainless steel AISI 304 (EWMR) or AISI 316Ti soft stainless steel (EWMS)

         Part No.                       d                 Weight               Max.          Effective hardness                  Part No.                           d                       Weight                      Max.
                                                           [kg/m]              length              depth                                                                                     [kg/m]                     length
         EWM-06                         06                 0.222               3,000                0.8                          EWMR-10                            10                       0.617                      4,000
         EWM-08                         08                 0.359               4,000                0.9                          EWMS-10                            10                       0.617                      3,000
         EWM-10                         10                 0.617               4,000                0.9                          EWMR-12                            12                       0.888                      6,000
         EWM-12                         12                 0.888               6,000                1.0                          EWMR-16                            16                       1.578                      6,000
         EWM-16                         16                 1.578               6,000                1.2                          EWMR-20                            20                       2.466                      3,000
         EWM-20                         20                 2.466               6,000                1.6                          EWMS-20                            20                       2.466                      3,000
         EWM-25                         25                 3.853               6,000                1.8                          EWMR-25                            25                       3.853                      6,000
         EWM-30                         30                 5.549               6,000                2.0                          EWMR-30                            30                       5.549                      6,000
         EWM-40                         40                 9.865               6,000                2.2
         EWM-50                         50                15.413               6,000                2.4                                Order example:
                                                                                                                   ASEAN 09/2023  ASEAN 09/2023  EWM-16-500:  Stainless steel shaft (AISI 440B), with 16mm Ø, 500mm length




        332 Online tools and more information u www.igus-asean.com/drylin-shafts                                                         3D CAD files, prices and delivery time online u www.igus-asean.com/drylin-shafts           333
