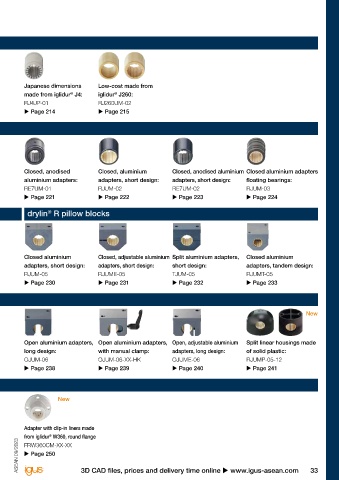

drylin  linear technology | Product overview
                   ®



          drylin  R solid plastic bearings
                 ®

                                                                     New                       New



        Standard design           Standard design, precise,  Standard design          Standard design                            Japanese dimensions       Low-cost made from
                                                                                                                                                 ®
                                                                                                       ®
                                                                             ®
                         ®
                                                   ®
                                                                                                                                                                ®
        made from iglidur  J:     made from iglidur  J:     made from iglidur  A180:  made from iglidur  A160:                   made from iglidur  J4:    iglidur  J260:
        RJM-01                    RJMP-01                   RA180M-01-10              RA160M-01-10                               RJ4JP-01                  RJ260UM-02
        u Page 210                u Page 211                u Page 212                u Page 213                                 u Page 214                u Page 215
          drylin  R linear plain bearings
                 ®
                                                                     New



        Closed aluminium          Closed aluminium          Adapter with clip-in liners  Closed adapters made                    Closed, anodised          Closed, aluminium         Closed, anodised aluminium Closed aluminium adapters
        adapters:                 adapters, precise:        made from iglidur  W360:  of stainless steel 303:                    aluminium adapters:       adapters, short design:   adapters, short design:   floating bearings:
                                                                             ®
        RJUM-01                   RJUM-11                   RW360CM-01-12             RJUM-ES                                    RE7UM-01                  RJUM-02                   RE7UM-02                  RJUM-03
        u Page 216                u Page 217                u Page 218                u Page 220                                 u Page 221                u Page 222                u Page 223                u Page 224


          drylin  R linear plain bearings                                                                                         drylin  R pillow blocks
                 ®
                                                                                                                                         ®






        Split aluminium adapters:  Split aluminium adapters,  Open, anodised aluminium   Open aluminium adapters,                Closed aluminium          Closed, adjustable aluminium  Split aluminium adapters,  Closed aluminium
                                  floating bearings:        adapters, for supported shafts: floating bearing:                    adapters, short design:   adapters, short design:   short design:             adapters, tandem design:
        TJUM-01                   TJUM-03                   OJUM-01                   OJUM-03                                    RJUM-05                   RJUME-05                  TJUM-05                   RJUMT-05
        u Page 225                u Page 226                u Page 227                u Page 228                                 u Page 230                u Page 231                u Page 232                u Page 233

          drylin  R pillow blocks
                 ®

                                                                                                                                                                                                                                    New



        Closed aluminium          Closed aluminium adapters,  Closed housings,        Open housings,                             Open aluminium adapters,  Open aluminium adapters,  Open, adjustable aluminium   Split linear housings made
        adapters, long design:    with manual clamp:        floating bearings:        floating bearings:                         long design:              with manual clamp:        adapters, long design:    of solid plastic:
        RJUM-06                   RJUM-06-XX-HK             RJUM-06-XX-LL             OJUM-06-XX-LL                              OJUM-06                   OJUM-06-XX-HK             OJUME-06                  RJUMP-05-12
        u Page 234                u Page 235                u Page 236                u Page 237                                 u Page 238                u Page 239                u Page 240                u Page 241

          drylin  R flanged linear plain bearings
                 ®

                                                                                                                                            New



        Closed aluminium          Closed aluminium          Closed aluminium adapters,   Closed aluminium adapters,              Adapter with clip-in liners made
        adapters, round flange:   adapters, square flange:  round flange, tandem design: square flange, tandem design:           from iglidur  W360, round flange
                                                                                                                                         ®
        FJUM-01                   FJUM-02                   FJUMT-01                  FJUMT-02                                   FRW360CM-XX-XX
        u Page 242                u Page 244                u Page 246                u Page 248                   ASEAN 09/2023  ASEAN 09/2023  u Page 250
