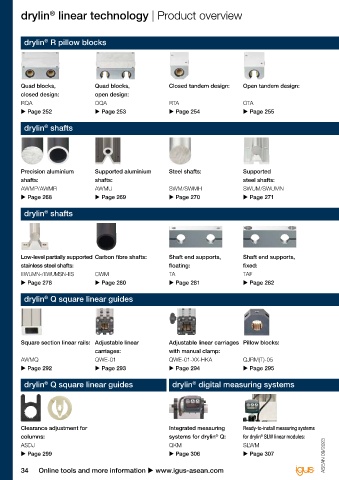

drylin  linear technology | Product overview
                   ®



          drylin  R pillow blocks
                 ®







        Quad blocks,              Quad blocks,              Closed tandem design:     Open tandem design:                        Closed, long design:      Open, long design:        Closed, short design:     Open, short design:
        closed design:            open design:
        RQA                       OQA                       RTA                       OTA                                        RGA                       OGA                       RGAS                      OGAS
        u Page 252                u Page 253                u Page 254                u Page 255                                 u Page 256                u Page 257                u Page 258                u Page 259

          drylin  shafts
                 ®






        Precision aluminium       Supported aluminium       Steel shafts:             Supported                                  Stainless steel shafts:   Supported stainless steel   Low-level supported     Partially supported
        shafts:                   shafts:                                             steel shafts:                                                        shafts:                   stainless steel shafts:   stainless steel shafts:
        AWMP/AWMR                 AWMU                      SWM/SWMH                  SWUM/SWUMN                                 EWM/EEWM/EWMR             EWUM                      EWUMN                     EWUM-ES/EWUMS-ES
        u Page 268                u Page 269                u Page 270                u Page 271                                 u Page 272                u Page 274                u Page 275                u Page 276


          drylin  shafts
                 ®







        Low-level partially supported Carbon fibre shafts:  Shaft end supports,       Shaft end supports,                        Shaft end blocks,         Shaft end blocks,         Shaft end blocks,         Flanged shaft end blocks:
        stainless steel shafts:                             floating:                 fixed:                                     standard design:          compact design:           narrow design:
        EWUMN-/EWUMSN-ES          CWM                       TA                        TAF                                        WA                        WAC                       WAS                       WAF
        u Page 278                u Page 280                u Page 281                u Page 282                                 u Page 283                u Page 284                u Page 285                u Page 286

          drylin  Q square linear guides
                 ®






        Square section linear rails: Adjustable linear      Adjustable linear carriages  Pillow blocks:                          Fixed flange bearings     Fixed flange bearings     Solid plastic             Accessories
                                  carriages:                with manual clamp:                                                   with round flange:        with square flange:       linear bearings:          for drylin  Q
                                                                                                                                                                                                                       ®
        AWMQ                      QWE-01                    QWE-01-XX-HKA             QJRM(T)-05                                 QJFM(T)-01                QJFM(T)-02                QJRMP-01
        u Page 292                u Page 293                u Page 294                u Page 295                                 u Page 296                u Page 296                u Page 297                u Page 298

          drylin  Q square linear guides                      drylin  digital measuring systems
                 ®
                                                                     ®





        Clearance adjustment for                            Integrated measuring      Ready-to-install measuring systems         Digital measuring system   Measuring system with positionable  Measuring systems for external  Stop motion measuring
                                                                                             ®
                                                                                                                                         ®
                                                                                                                                                                                                     ®
                                                                                                                                                                            ®
        columns:                                            systems for drylin  Q:    for drylin  SLW linear modules:            for drylin  W:            readout display for drylin  W:  data output for drylin  W:  system with rail scale:
                                                                             ®
        ASDJ                                                QKM                       SLWM                                       WKM2                      WKMEDR                    WKMEX                     NKV-27-MES-XXXX
        u Page 299                                          u Page 306                u Page 307                   ASEAN 09/2023  ASEAN 09/2023  u Page 308  u Page 309              u Page 310                u Page 311
