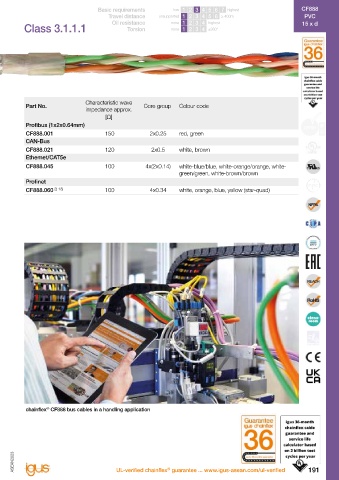

Page 197 - ASEAN Chainflex Catalogue 2023

CF888 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF888
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
15 x d ® Oil resistance none 1 2 3 4 highest 15 x d
Bus cable | PVC | chainflex CF888 Class 3.1.1.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper Characteristic wave
Part No. Weight Part No. Core group Colour code
nominal cross section (d) max. index impedance approx.
[mm²] [mm] [kg/km] [kg/km] [Ω]
Profibus (1x2x0.64mm) Profibus (1x2x0.64mm)
CF888.001 (2x0.25)C 8.0 18 59 CF888.001 150 2x0.25 red, green
CAN-Bus CAN-Bus
CF888.021 (2x0.5)C 8.5 24 73 CF888.021 120 2x0.5 white, brown
Ethernet/CAT5e Ethernet/CAT5e
CF888.045 (4x(2x0.14))C 7.0 25 62 CF888.045 100 4x(2x0.14) white-blue/blue, white-orange/orange, white-
green/green, white-brown/brown
Profinet Profinet
CF888.060 2) 13) (4x0.34)C 7.0 25 59 CF888.060 2) 13) 100 4x0.34 white, orange, blue, yellow (star-quad)
®
2)
The chainflex types marked with are cables designed as a star-quad.
13) Colour outer jacket: Yellow-green (RAL 6018)
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

®
Cables available in the chainflex CASE
Simple savings on delivery, storage space and re-ordering with
the chainflex CASE - ship'n store by igus .
®
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case

Technical note on bus cables
chainflex bus cables have been specially developed and tested for continuously moving use in e-chains . Depending on the
®
®
material used for the outer jacket and on the underlying construction principle, the bus cables are designed for different mechanical
requirements and resistance to diverse media.
The cables have been electrically designed in such a way that, on the one hand, the electrical requirements of the respective bus
specification are reliably met and, on the other, that greater value is placed on a high degree of EMC reliability.
It is also ensured that the electrical values remain stable over the long term in spite of permanent movement.
The overall quality of transmission in a complete bus communication system, however, is not solely dependent on the cable used.
What is also essential is that all components (electronic parts, connecting system and cable) are precisely matched to each other
and that the maximum transmission lengths, which are dependent on the respective system, are adhered to with regard to the data
®
transmission rates needed. A cable is thus not solely responsible for the reliable transmission of signals. chainflex CF888 bus cables in a handling application
®
igus advises you when you are designing your bus system to take all these factors into account and, with extensive tests, helps you
to ensure the process reliability of your system from the very beginning.

EPLAN download, configurators  www.igus-asean.com/CF888
