CF898 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CF898
iguPUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m iguPUR
15 x d ® Oil resistance none 1 2 3 4 highest 15 x d

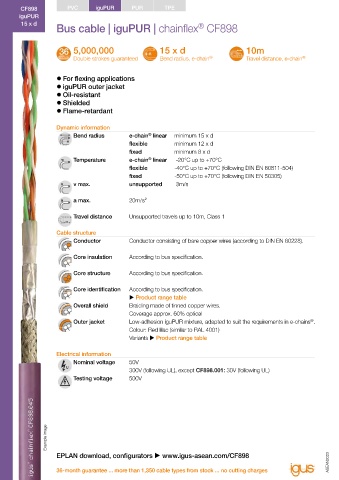

Bus cable | iguPUR | chainflex CF898 Class 3.1.3.1 Torsion none 1 2 3 4 ±360°

5,000,000 15 x d 10m Properties and approvals Medium
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3
z For flexing applications
z iguPUR outer jacket Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z Oil-resistant CF898.082-CF898.083: According to IEC 60332-1-2, FT2
z Shielded Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z Flame-retardant 1992)
UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
Dynamic information service life calculator based on 2 billion test cycles per year"
Bend radius e-chain linear minimum 15 x d UL/CSA AWM See data sheet for details  www.igus-asean.com/CF898
®
flexible minimum 12 x d
fixed minimum 8 x d NFPA CF898.001-CF898.060: Following NFPA 79-2018, Kapitel 12.9
®
Temperature e-chain linear -20°C up to +70°C
flexible -40°C up to +70°C (following DIN EN 60811-504) EAC Certificate No. RU C-DE.ME77.B.00295/19
fixed -50°C up to +70°C (following DIN EN 50305)
v max. unsupported 3m/s REACH In accordance with regulation (EC) No. 1907/2006 (REACH)

a max. 20m/s² Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)

Travel distance Unsupported travels up to 10m, Class 1 CE Following 2014/35/EU

Cable structure UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Conductor Conductor consisting of bare copper wires (according to DIN EN 60228).

Core insulation According to bus specification. Guaranteed service life (details see page 28-29)

Double strokes* 1 million 3 million 5 million
Core structure According to bus specification. Temperature, R min. R min. R min.
from/to [°C] [factor x d] [factor x d] [factor x d]
Core identification According to bus specification. -20/-10 17.5 18.5 19.5
 Product range table -10/+60 15 16 17
Overall shield Braiding made of tinned copper wires. +60/+70 17.5 18.5 19.5
Coverage approx. 60% optical * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Outer jacket Low-adhesion iguPUR mixture, adapted to suit the requirements in e-chains .
®
Colour: Red lilac (similar to RAL 4001) Typical application areas
Variants  Product range table z For flexing applications, Class 3
z Especially for unsupported travels, Class 1
Electrical information z With influence of oil, Class 3
Nominal voltage 50V z No torsion, Class 1
300V (following UL), except CF898.001: 30V (following UL) z Indoor and outdoor applications without direct sun radiation
Testing voltage 500V z Machining units/machine tools, low temperature applications

Example image

EPLAN download, configurators  www.igus-asean.com/CF898
