CFBUS.PUR PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFBUS.PUR
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
12.5 x d ® Oil resistance none 1 2 3 4 highest 12.5 x d

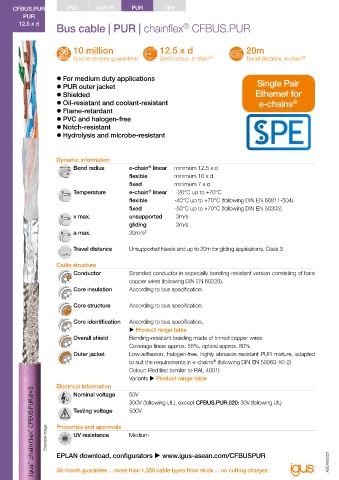

Bus cable | PUR | chainflex CFBUS.PUR Class 4.3.3.1 Torsion none 1 2 3 4 ±360°

10 million 12.5 x d 20m Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
Offshore MUD-resistant following NEK 606 - status 2016

z For medium duty applications Single Pair Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z PUR outer jacket
z Shielded Ethernet for Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z Oil-resistant and coolant-resistant e-chains ® 1992)
z Flame-retardant Halogen-free Following DIN EN 60754
z PVC and halogen-free
z Notch-resistant UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
z Hydrolysis and microbe-resistant service life calculator based on 2 billion test cycles per year"
UL listed CMX, 75°C (except CFBUS.PUR.068)

Dynamic information UL/CSA AWM See data sheet for details  www.igus-asean.com/CFBUSPUR
Bend radius e-chain linear minimum 12.5 x d
®
flexible minimum 10 x d NFPA Following NFPA 79-2018, chapter 12.9
fixed minimum 7 x d
Temperature e-chain linear -20°C up to +70°C CLPA CFBUS.PUR.045: , Reference no. 151
®
flexible -40°C up to +70°C (following DIN EN 60811-504) CFBUS.PUR.049: , Reference no. 152
fixed -50°C up to +70°C (following DIN EN 50305) DNV Type Approval Certificate TAE00003X6
v max. unsupported 3m/s CFBUS.PUR.040-.052: Type Approval Certificate TAE00003X8
gliding 2m/s EAC Certificate No. RU C-DE.ME77.B.00295/19
a max. 30m/s²
REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
Travel distance Unsupported travels and up to 20m for gliding applications, Class 3
Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
Cable structure
Conductor Stranded conductor in especially bending-resistant version consisting of bare Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
copper wires (following DIN EN 60228). CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
Core insulation According to bus specification. DESINA According to VDW, DESINA standardisation

Core structure According to bus specification. CE Following 2014/35/EU

Core identification According to bus specification. UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
 Product range table
Overall shield Bending-resistant braiding made of tinned copper wires.
Coverage linear approx. 55%, optical approx. 80% Guaranteed service life (details see page 28-29)
Outer jacket Low-adhesion, halogen-free, highly abrasion resistant PUR mixture, adapted Double strokes* 5 million 7.5 million 10 million

®
to suit the requirements in e-chains (following DIN EN 50363-10-2) Temperature, R min. R min. R min.
Colour: Red lilac (similar to RAL 4001) from/to [°C] [factor x d] [factor x d] [factor x d]
Variants  Product range table -20/-10 15 16 17
Electrical information -10/+60 12.5 13.5 14.5
Nominal voltage 50V +60/+70 15 16 17
300V (following UL), except CFBUS.PUR.020: 30V (following UL) * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Testing voltage 500V
Typical application areas
For medium duty applications, Class 4
Example image UV resistance Medium z Unsupported travels and up to 20m for gliding applications, Class 3
Properties and approvals
z
Almost unlimited resistance to oil, Class 3
z
EPLAN download, configurators  www.igus-asean.com/CFBUSPUR z No torsion, Class 1
Indoor and outdoor applications without direct sun radiation
z
200 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 z Machining units/machine tools, low temperature applications 201
