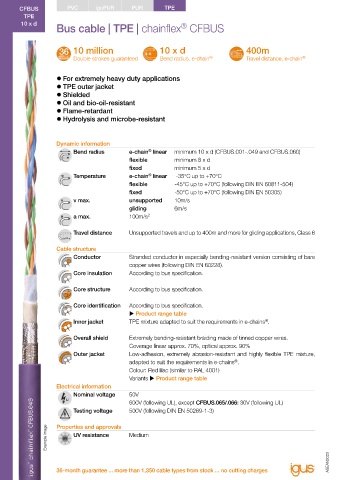

Page 210 - ASEAN Chainflex Catalogue 2023

CFBUS PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFBUS
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Bus cable | TPE | chainflex CFBUS Class 6.6.4.1 Torsion none 1 2 3 4 ±360°

10 million 10 x d 400m Oil resistance Oil-resistant (following DIN EN 60811-404), bio-oil-resistant (following VDMA
24568 with Plantocut 8 S-MB tested by DEA), Class 4
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®
Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
CFBUS.030/CFBUS.065/CFBUS.066: According to IEC 60332-1-2, FT2
z For extremely heavy duty applications Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z TPE outer jacket 1992)
z Shielded UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
z Oil and bio-oil-resistant service life calculator based on 2 billion test cycles per year"
z Flame-retardant UL/CSA AWM See data sheet for details www.igus-asean.com/CFBUS
z Hydrolysis and microbe-resistant
NFPA Following NFPA 79-2018, chapter 12.9

Dynamic information CLPA CFBUS.045: , Reference no. 130
®
Bend radius e-chain linear minimum 10 x d (CFBUS.001-.049 and CFBUS.060) CFBUS.049: , Reference no. 137
flexible minimum 8 x d DNV Type Approval Certificate TAE00003X5
fixed minimum 5 x d CFBUS.040-.052: Type Approval Certificate TAE00003X7
Temperature e-chain linear -35°C up to +70°C EAC Certificate No. RU C-DE.ME77.B.00295/19
®
flexible -45°C up to +70°C (following DIN EN 60811-504)
fixed -50°C up to +70°C (following DIN EN 50305) REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
v max. unsupported 10m/s
gliding 6m/s Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
a max. 100m/s²
Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
Travel distance Unsupported travels and up to 400m and more for gliding applications, Class 6 CF34.UL.25.04.D - tested by IPA according to standard DIN EN ISO 14644-1
DESINA According to VDW, DESINA standardisation
Cable structure
Conductor Stranded conductor in especially bending-resistant version consisting of bare CE Following 2014/35/EU
copper wires (following DIN EN 60228).
Core insulation According to bus specification. UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

Core structure According to bus specification.
Guaranteed service life (details see page 28-29)
Core identification According to bus specification. Double strokes* 5 million 7.5 million 10 million

 Product range table CFBUS CFBUS CFBUS CFBUS CFBUS CFBUS
Inner jacket TPE mixture adapted to suit the requirements in e-chains . Temperature, .001-.049 .050-.070 .001-.049 .050-.070 .001-.049 .050-.070
®
from/to [°C] R min. R min. R min. R min. R min. R min.
Overall shield Extremely bending-resistant braiding made of tinned copper wires. [factor x d] [factor x d] [factor x d] [factor x d] [factor x d] [factor x d]
Coverage linear approx. 70%, optical approx. 90% -35/-25 12.5 15 13.5 16 14.5 17
Outer jacket Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, -25/+60 10 12.5 11 13.5 12 14.5
adapted to suit the requirements in e-chains . +60/+70 12.5 15 13.5 16 14.5 17
®
Colour: Red lilac (similar to RAL 4001) * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Variants  Product range table
Electrical information Typical application areas
Nominal voltage 50V z For heavy-duty applications, Class 6
600V (following UL), except CFBUS.065/.066: 30V (following UL) z Unsupported travels and up to 400m and more for gliding applications,
Testing voltage 500V (following DIN EN 50289-1-3) Class 6
z Almost unlimited resistance to oil, also with bio-oils, Class 4
No torsion, Class 1
Properties and approvals
Example image UV resistance Medium z Indoor and outdoor applications without direct sun radiation
z
Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick
z
ASEAN2023 ASEAN2023 handling, cleanroom, semiconductor insertion, indoor cranes, low temperature applications
