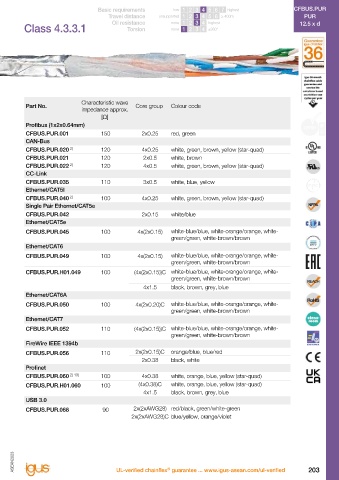

Page 209 - ASEAN Chainflex Catalogue 2023

CFBUS.PUR PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFBUS.PUR
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
12.5 x d ® Oil resistance none 1 2 3 4 highest 12.5 x d
Bus cable | PUR | chainflex CFBUS.PUR Class 4.3.3.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper Characteristic wave
Part No. Weight Part No. Core group Colour code
nominal cross section (d) max. index impedance approx.
[mm²] [mm] [kg/km] [kg/km] [Ω]
Profibus (1x2x0.64mm) Profibus (1x2x0.64mm)
CFBUS.PUR.001 (2x0.25)C 8.5 25 75 CFBUS.PUR.001 150 2x0.25 red, green
CAN-Bus CAN-Bus
CFBUS.PUR.020 2) (4x0.25)C 7.5 23 64 CFBUS.PUR.020 2) 120 4x0.25 white, green, brown, yellow (star-quad)
CFBUS.PUR.021 (2x0.5)C 8.5 32 82 CFBUS.PUR.021 120 2x0.5 white, brown
CFBUS.PUR.022 2) (4x0.5)C 8.5 43 91 CFBUS.PUR.022 2) 120 4x0.5 white, green, brown, yellow (star-quad)
CC-Link CC-Link
CFBUS.PUR.035 (3x0.5)C 8.0 40 76 CFBUS.PUR.035 110 3x0.5 white, blue, yellow
Ethernet/CAT5I Ethernet/CAT5I
CFBUS.PUR.040 2) (4x0.25)C 6.5 29 69 CFBUS.PUR.040 2) 100 4x0.25 white, green, brown, yellow (star-quad)
Single Pair Ethernet/CAT5e Single Pair Ethernet/CAT5e
CFBUS.PUR.042 (2x0.15)C 5.5 12 33 CFBUS.PUR.042 2x0.15 white/blue
Ethernet/CAT5e Ethernet/CAT5e
CFBUS.PUR.045 (4x(2x0.15))C 7.5 33 66 CFBUS.PUR.045 100 4x(2x0.15) white-blue/blue, white-orange/orange, white-
green/green, white-brown/brown
Ethernet/CAT6 Ethernet/CAT6
CFBUS.PUR.049 (4x(2x0.15))C 7.5 33 66 CFBUS.PUR.049 100 4x(2x0.15) white-blue/blue, white-orange/orange, white-
green/green, white-brown/brown
CFBUS.PUR.H01.049 ((4x(2x0.15))C+4x1.5)C 12.5 125 202 CFBUS.PUR.H01.049 100 (4x(2x0.15))C white-blue/blue, white-orange/orange, white-
green/green, white-brown/brown
4x1.5 black, brown, grey, blue
Ethernet/CAT6A Ethernet/CAT6A
CFBUS.PUR.050 4x(2x0.20)C 10.0 65 120 CFBUS.PUR.050 100 4x(2x0.20)C white-blue/blue, white-orange/orange, white-
green/green, white-brown/brown
Ethernet/CAT7 Ethernet/CAT7
CFBUS.PUR.052 (4x(2x0.15)C)C 9.5 89 129 CFBUS.PUR.052 110 (4x(2x0.15))C white-blue/blue, white-orange/orange, white-
green/green, white-brown/brown
FireWire IEEE 1394b FireWire IEEE 1394b

CFBUS.PUR.056 (2x(2x0.15)C+2x0.38)C 9.0 59 91 CFBUS.PUR.056 110 2x(2x0.15)C orange/blue, blue/red
2x0.38 black, white
Profinet Profinet
CFBUS.PUR.060 2) 13) (4x0.38)C 7.0 33 64 CFBUS.PUR.060 2) 13) 100 4x0.38 white, orange, blue, yellow (star-quad)
CFBUS.PUR.H01.060 ((4x0.38)C+4x1.5)C 11.5 120 196 CFBUS.PUR.H01.060 100 (4x0.38)C white, orange, blue, yellow (star-quad)
4x1.5 black, brown, grey, blue
USB 3.0 USB 3.0
CFBUS.PUR.068 (2x(2xAWG28) 7.0 39 64 CFBUS.PUR.068 90 2x(2xAWG28) red/black, green/white-green
+2x(2xAWG28)C)C 2x(2xAWG28)C blue/yellow, orange/violet

The chainflex types marked with are cables designed as a star-quad.
®
2)
13) Colour outer jacket: Yellow-green (RAL 6018)
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
EPLAN download, configurators  www.igus-asean.com/CFBUSPUR
