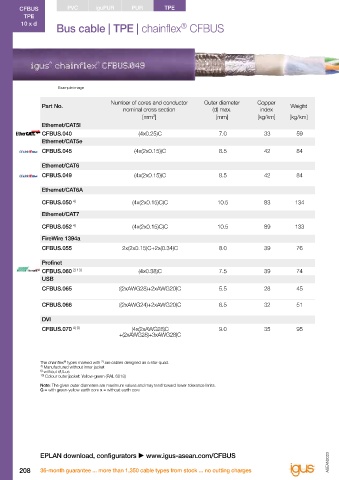

Page 214 - ASEAN Chainflex Catalogue 2023

CFBUS PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFBUS
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d
Bus cable | TPE | chainflex CFBUS Class 6.6.4.1 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper Characteristic wave
Part No. Weight Part No. Core group Colour code
nominal cross section (d) max. index impedance approx.
[mm²] [mm] [kg/km] [kg/km] [Ω]
Ethernet/CAT5I Ethernet/CAT5I
CFBUS.040 (4x0.25)C 7.0 33 59 CFBUS.040 100 4x0.25 white, green, brown, yellow (star-quad)
Ethernet/CAT5e Ethernet/CAT5e
CFBUS.045 (4x(2x0.15))C 8.5 42 84 CFBUS.045 100 4x(2x0.15) white-blue/blue, white-orange/orange, white-
green/green, white-brown/brown
Ethernet/CAT6 Ethernet/CAT6
CFBUS.049 (4x(2x0.15))C 8.5 42 84 CFBUS.049 100 4x(2x0.15) white-blue/blue, white-orange/orange, white-
green/green, white-brown/brown
Ethernet/CAT6A Ethernet/CAT6A
white-blue/blue, white-orange/orange, white-
CFBUS.050 4) (4x(2x0.15)C)C 10.5 83 134 CFBUS.050 4) 100 4x(2x0.15)C
green/green, white-brown/brown
Ethernet/CAT7 Ethernet/CAT7
white-blue/blue, white-orange/orange, white-
CFBUS.052 4) (4x(2x0.15)C)C 10.5 89 133 CFBUS.052 4) 100 4x(2x0.15)C
green/green, white-brown/brown
FireWire 1394a FireWire 1394a

CFBUS.055 2x(2x0.15)C+2x(0.34)C 8.0 39 76 CFBUS.055 100 2x(2x0.15)C orange/blue, green/red
2x(0.34)C white, black
Profinet Profinet
CFBUS.060 2) 13) (4x0.38)C 7.5 39 74 CFBUS.060 2) 13) 100 4x0.38 white, orange, blue, yellow (star-quad)
USB USB
CFBUS.065 ((2xAWG28)+2xAWG20)C 5.5 28 45 CFBUS.065 90 (2xAWG28) white/green
2xAWG20 red, black
CFBUS.066 ((2xAWG24)+2xAWG20)C 6.5 32 51 CFBUS.066 90 (2xAWG24) white/green
2xAWG20 red, black
DVI DVI
CFBUS.070 4) 6) (4x(2xAWG28)C 9.0 35 95 CFBUS.070 4) 6) 100 4x(2xAWG28)C 4 x white/yellow with element-shield in blue,
+(2xAWG28)+3xAWG28)C black, red, white
(2xAWG28) white/brown
3xAWG28)C green, yellow, grey

®
2)
The chainflex types marked with are cables designed as a star-quad.
4) Manufactured without inner jacket
6) without cULus
13) Colour outer jacket: Yellow-green (RAL 6018)
Technical note on bus cables
®
®
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. chainflex bus cables have been specially developed and tested for continuously moving use in e-chains . Depending on the
G = with green-yellow earth core x = without earth core material used for the outer jacket and on the underlying construction principle, the bus cables are designed for different mechanical
requirements and resistance to diverse media.
The cables have been electrically designed in such a way that, on the one hand, the electrical requirements of the respective bus
specification are reliably met and, on the other, that greater value is placed on a high degree of EMC reliability.
It is also ensured that the electrical values remain stable over the long term in spite of permanent movement.
The overall quality of transmission in a complete bus communication system, however, is not solely dependent on the cable used.
What is also essential is that all components (electronic parts, connecting system and cable) are precisely matched to each other
and that the maximum transmission lengths, which are dependent on the respective system, are adhered to with regard to the data
transmission rates needed. A cable is thus not solely responsible for the reliable transmission of signals.
igus advises you when you are designing your bus system to take all these factors into account and, with extensive tests, helps you
®
to ensure the process reliability of your system from the very beginning.
EPLAN download, configurators  www.igus-asean.com/CFBUS
