CFBUS.PVC PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFBUS.PVC
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
12.5 x d ® Oil resistance none 1 2 3 4 highest 12.5 x d

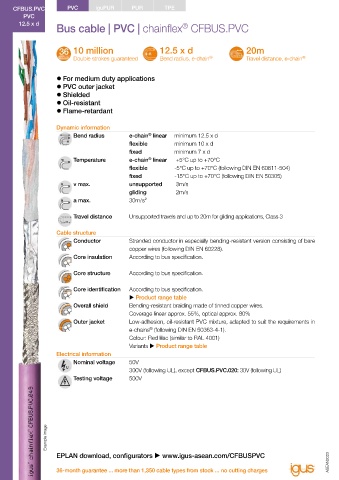

Bus cable | PVC | chainflex CFBUS.PVC Class 4.3.2.1 Torsion none 1 2 3 4 ±360°

10 million 12.5 x d 20m Properties and approvals Medium
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 50363-4-1), Class 2
z For medium duty applications
z PVC outer jacket Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z Shielded
z Oil-resistant Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z Flame-retardant 1992)
UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
Dynamic information service life calculator based on 2 billion test cycles per year"
Bend radius e-chain linear minimum 12.5 x d UL listed CMX, 75°C (except CFBUS.PVC.068)
®
flexible minimum 10 x d
fixed minimum 7 x d UL/CSA AWM See data sheet for details  www.igus-asean.com/CFBUSPVC
®
Temperature e-chain linear +5°C up to +70°C
flexible -5°C up to +70°C (following DIN EN 60811-504) NFPA Following NFPA 79-2018, chapter 12.9
fixed -15°C up to +70°C (following DIN EN 50305)
v max. unsupported 3m/s CLPA CFBUS.PVC.045: , Reference no. 153
gliding 2m/s CFBUS.PVC.049: , Reference no. 154
a max. 30m/s² EAC Certificate No. RU C-DE.ME77.B.00295/19

Travel distance Unsupported travels and up to 20m for gliding applications, Class 3 REACH In accordance with regulation (EC) No. 1907/2006 (REACH)

Cable structure Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
Conductor Stranded conductor in especially bending-resistant version consisting of bare
copper wires (following DIN EN 60228). Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
Core insulation According to bus specification. CF240.02.24 - tested by IPA according to standard DIN EN ISO 14644-1
CE Following 2014/35/EU
Core structure According to bus specification.
UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Core identification According to bus specification.
 Product range table
Overall shield Bending-resistant braiding made of tinned copper wires. Guaranteed service life (details see page 28-29)
Coverage linear approx. 55%, optical approx. 80% Double strokes* 5 million 7.5 million 10 million

Outer jacket Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in Temperature, R min. R min. R min.
®
e-chains (following DIN EN 50363-4-1). from/to [°C] [factor x d] [factor x d] [factor x d]
Colour: Red lilac (similar to RAL 4001) +5/+15 15 16 17
Variants  Product range table +15/+60 12.5 13.5 14.5
Electrical information +60/+70 15 16 17
Nominal voltage 50V * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
300V (following UL), except CFBUS.PVC.020: 30V (following UL)
Testing voltage 500V Typical application areas
z For medium duty applications, Class 4
z Unsupported travels and up to 20m for gliding applications, Class 3
z Light oil influence, Class 2
z No torsion, Class 1
z Preferably indoor applications, but also outdoor ones at temperatures > 5 °C
Machining units/packaging machines, handling, indoor cranes
Example image
z

EPLAN download, configurators  www.igus-asean.com/CFBUSPVC

192 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges ASEAN2023 ASEAN2023 UL-verified chainflex guarantee ... www.igus-asean.com/ul-verified 193
®
