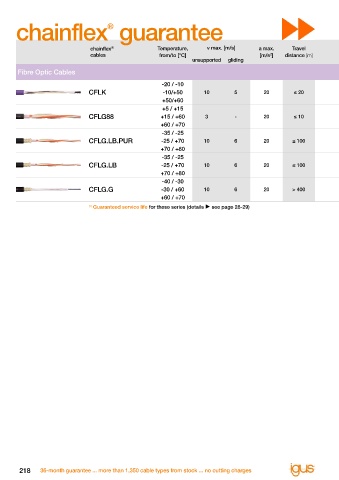

Page 224 - ASEAN Chainflex Catalogue 2023

chainflex guarantee Guaranteed service life (1)
®

Minimum bend Minimum bend Minimum bend
chainflex Temperature, v max. [m/s] a max. Travel radius [factor x d] radius [factor x d] radius [factor x d] Page
®
2
cables from/to [°C] [m/s ] distance [m]
unsupported gliding
Fibre Optic Cables 5 million (1 million) 7.5 million (3 million) 10 million (5 million)
double strokes * double strokes * double strokes *
-20 / -10 15 16 17
CFLK -10/+50 10 5 20 ≤ 20 12.5 13.5 14.5 220
+50/+60 15 16 17
+5 / +15 10 11 12
CFLG88 +15 / +60 3 - 20 ≤ 10 7.5 8.5 9.5 222
+60 / +70 10 11 12
-35 / -25 7.5 8.5 9.5
CFLG.LB.PUR -25 / +70 10 6 20 ≤ 100 5 6 7 224
+70 / +80 7.5 8.5 9.5
-35 / -25 7.5 8.5 9.5
CFLG.LB -25 / +70 10 6 20 ≤ 100 5 6 7 228
+70 / +80 7.5 8.5 9.5
-40 / -30 12.5 13.5 14.5
CFLG.G -30 / +60 10 6 20 > 400 10 11 12 232
+60 / +70 12.5 13.5 14.5

(1) Guaranteed service life for these series (details  see page 28-29) * Higher number of double strokes? Calculate service life online:  www.igus-asean.com/chainflexlife
Figures in brackets refer to series CFLG88
