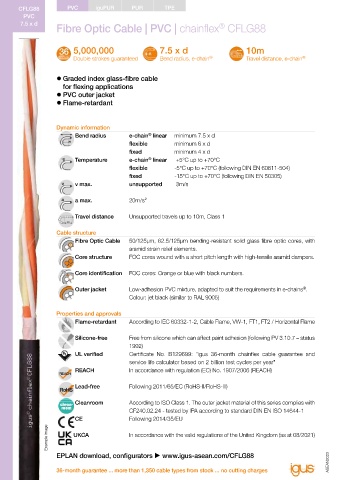

CFLG88 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFLG88
PVC Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PVC
7.5 x d ® Oil resistance none 1 2 3 4 highest 7.5 x d
Fibre Optic Cable | PVC | chainflex CFLG88 Class 3.1.1.1 Torsion none 1 2 3 4 ±360°

5,000,000 7.5 x d 10m Guaranteed service life (details see page 28-29)

Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ® Double strokes* 1 million 3 million 5 million
Temperature, R min. R min. R min.
from/to [°C] [factor x d] [factor x d] [factor x d]
z Graded index glass-fibre cable +5/+15 10 11 12
for flexing applications +15/+60 7.5 8.5 9.5
z PVC outer jacket +60/+70 10 11 12
z Flame-retardant * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife

Typical application areas
Dynamic information z For flexing applications, Class 3
®
Bend radius e-chain linear minimum 7.5 x d z Especially for unsupported travels, Class 1
flexible minimum 6 x d z Without influence of oil, Class 1
fixed minimum 4 x d z No torsion, Class 1
®
Temperature e-chain linear +5°C up to +70°C z Highest EMC safety
flexible -5°C up to +70°C (following DIN EN 60811-504) z Preferably indoor applications
fixed -15°C up to +70°C (following DIN EN 50305) z Wood/stone processing, packaging industry, feeding, handling, adjusting devices
v max. unsupported 3m/s

a max. 20m/s²

Number of fibres/ Outer diameter
Part No. Weight
Travel distance Unsupported travels up to 10m, Class 1 Fibre diameter (d) max.
[mm] [kg/km]
Cable structure CFLG88.2.62.5/125 11) 2x62.5/125 7.0 44
Fibre Optic Cable 50/125μm, 62.5/125μm bending-resistant solid glass fibre optic cores, with CFLG88.2.50/125 2x50/125 7.0 44
aramid strain relief elements. 11) Phase-out model
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
Core structure FOC cores wound with a short pitch length with high-tensile aramid dampers.

Core identification FOC cores: Orange or blue with black numbers.
Bandwidth Attenuation Bandwidth Attenuation Fibre identification
[dB/km] [MHz x km]
[dB/km]
®
Outer jacket Low-adhesion PVC mixture, adapted to suit the requirements in e-chains . Part No. [MHz x km] @ 850nm @ 1,300nm @ 1,300nm
@ 850nm
Colour: jet black (similar to RAL 9005)
CFLG88.2.62.5/125 ≥ 200 ≤ 3.5 ≥ 500 ≤ 1.5 orange with black numbers
Properties and approvals CFLG88.2.50/125 ≥ 200 ≤ 3.0 ≥ 500 ≤ 1.0 blue with black numbers
Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame

Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
1992) Cables available in the chainflex CASE
®
UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and Simple savings on delivery, storage space and re-ordering with
service life calculator based on 2 billion test cycles per year" the chainflex CASE - ship'n store by igus .
®
®
REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
More on this on page 24/25 and online: www.igus-asean.com/cf-case
Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)

Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
CF240.02.24 - tested by IPA according to standard DIN EN ISO 14644-1
CE Following 2014/35/EU
Example image UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

EPLAN download, configurators  www.igus-asean.com/CFLG88
