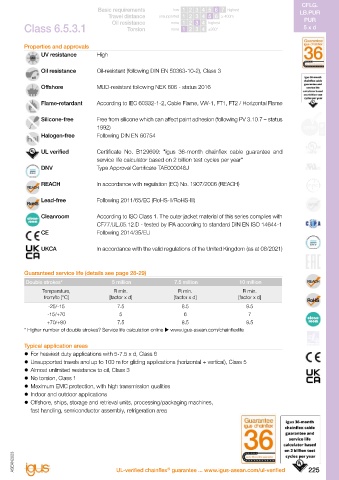

Page 231 - ASEAN Chainflex Catalogue 2023

CFLG. PVC iguPUR PUR TPE CFLG.
LB.PUR Basic requirements low 1 2 3 4 5 6 7 highest LB.PUR
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
Oil resistance
none 1 2 3 4 highest
®
5 x d Fibre Optic Cable | PUR | chainflex CFLG.LB.PUR Class 6.5.3.1 Torsion none 1 2 3 4 ±360° 5 x d
10 million 5 x d 100m Properties and approvals High
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3
z Graded index glass-fibre cable z Oil-resistant
for heaviest duty applications z Low-temperature-flexible Offshore MUD-resistant following NEK 606 - status 2016
z PUR outer jacket z PVC and halogen-free
z Metal-free z UV-resistant Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame

Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
Dynamic information 1992)
®
Bend radius e-chain linear minimum 5 x d Halogen-free Following DIN EN 60754
flexible minimum 4 x d
fixed minimum 3 x d UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
®
Temperature e-chain linear -25°C up to +80°C service life calculator based on 2 billion test cycles per year"
flexible -40°C up to +80°C (following DIN EN 60811-504) DNV Type Approval Certificate TAE000048J
fixed -50°C up to +80°C (following DIN EN 50305)
v max. unsupported 10m/s REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
gliding 6m/s
a max. 20m/s² Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)

Travel distance Unsupported travels and up to 100m for gliding applications, Class 5 Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
Cable structure CE Following 2014/35/EU
Fibre Optic Cable 50/125 μm, 62.5/125 μm, 9/125 μm especially bending-resistant solid glass
fibre optic cores, with aramid strain relief elements. UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Core structure FOC cores wound with a short pitch length with high-tensile aramid dampers.

Core identification Orange, blue or yellow with black numbers. Guaranteed service life (details see page 28-29)

Double strokes* 5 million 7.5 million 10 million
Overall shield Extremely bending-resistant aramid braid for torsion protection. Temperature, R min. R min. R min.
from/to [°C] [factor x d] [factor x d] [factor x d]
Outer jacket Low-adhesion, halogen-free, highly abrasion resistant PUR mixture, adapted -25/-15 7.5 8.5 9.5
®
to suit the requirements in e-chains (following DIN EN 50363-10-2) -15/+70 5 6 7
Colour: jet black (similar to RAL 9005) +70/+80 7.5 8.5 9.5
* Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife

Typical application areas
z For heaviest duty applications with 5-7.5 x d, Class 6
z Unsupported travels and up to 100 m for gliding applications (horizontal + vertical), Class 5
z Almost unlimited resistance to oil, Class 3
z No torsion, Class 1
z Maximum EMC protection, with high transmission qualities
z Indoor and outdoor applications
z Offshore, ships, storage and retrieval units, processing/packaging machines,
fast handling, semiconductor assembly, refrigeration area

Example image

EPLAN download, configurators  www.igus-asean.com/CFLGLBPUR
