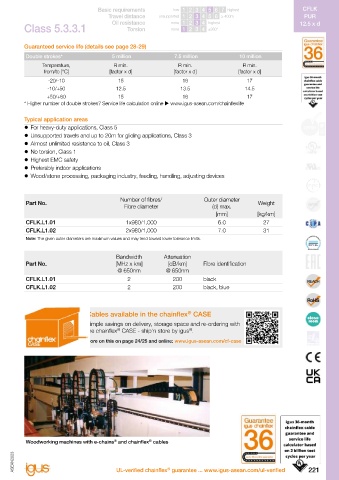

Page 227 - ASEAN Chainflex Catalogue 2023

CFLK PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFLK
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
12.5 x d ® Oil resistance none 1 2 3 4 highest 12.5 x d
Fibre Optic Cable | PUR | chainflex CFLK Class 5.3.3.1 Torsion none 1 2 3 4 ±360°

10 million 12.5 x d 20m Guaranteed service life (details see page 28-29)

Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ® Double strokes* 5 million 7.5 million 10 million
Temperature, R min. R min. R min.
from/to [°C] [factor x d] [factor x d] [factor x d]
z POF fibre for heavy duty applications z Oil-resistant and coolant-resistant -20/-10 15 16 17
and interference-free transmission -10/+50 12.5 13.5 14.5
z PUR outer jacket +50/+60 15 16 17
* Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Dynamic information
®
Bend radius e-chain linear minimum 12.5 x d Typical application areas
flexible minimum 10 x d z For heavy-duty applications, Class 5
fixed minimum 7 x d z Unsupported travels and up to 20m for gliding applications, Class 3
®
Temperature e-chain linear -20°C up to +60°C z Almost unlimited resistance to oil, Class 3
flexible -40°C up to +60°C (following DIN EN 60811-504) z No torsion, Class 1
fixed -50°C up to +60°C (following DIN EN 50305) z Highest EMC safety
v max. unsupported 10m/s z Preferably indoor applications
gliding 5m/s z Wood/stone processing, packaging industry, feeding, handling, adjusting devices
a max. 20m/s²

Travel distance Unsupported travels and up to 20m for gliding applications, Class 3 Number of fibres/ Outer diameter
Part No. Weight
Fibre diameter (d) max.
Cable structure [mm] [kg/km]
Fibre Optic Cable 980/1000 µm fibre with PE isolation. CFLK.L1.01 1x980/1,000 6.0 27
CFLK.L1.02 2x980/1,000 7.0 31
Core structure POF fibre with stranded high-tensile plastic reinforcement. Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.

Core identification  Product range table Bandwidth Attenuation
Part No. [MHz x km] [dB/km] Fibre identification
Outer jacket Low-adhesion, halogen-free PUR mixture, adapted to suit the requirements in @ 650nm @ 650nm
e-chains (following DIN EN 50363-10-2). CFLK.L1.01 2 200 black
®
Colour: Red lilac (similar to RAL 4001) CFLK.L1.02 2 200 black, blue
Properties and approvals
UV resistance Medium
®
Cables available in the chainflex CASE
Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3 Simple savings on delivery, storage space and re-ordering with
®
the chainflex CASE - ship'n store by igus .
®
Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status More on this on page 24/25 and online: www.igus-asean.com/cf-case
1992)
Halogen-free Following DIN EN 60754

UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
service life calculator based on 2 billion test cycles per year"
REACH In accordance with regulation (EC) No. 1907/2006 (REACH)

Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)

CE Following 2014/35/EU
Example image UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021) Woodworking machines with e-chains and chainflex cables

®
®
EPLAN download, configurators  www.igus-asean.com/CFLK
