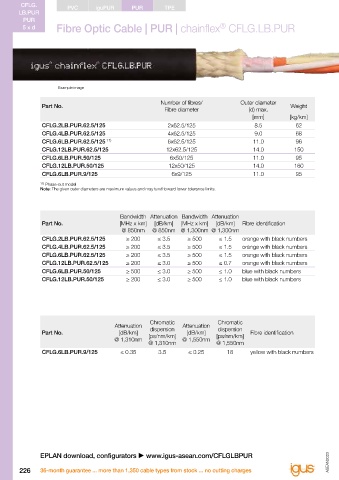

Page 232 - ASEAN Chainflex Catalogue 2023

CFLG. PVC iguPUR PUR TPE CFLG.
LB.PUR Basic requirements low 1 2 3 4 5 6 7 highest LB.PUR
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
Oil resistance
none 1 2 3 4 highest
®
5 x d Fibre Optic Cable | PUR | chainflex CFLG.LB.PUR Class 6.5.3.1 Torsion none 1 2 3 4 ±360° 5 x d

Example image

Number of fibres/ Outer diameter Order example: CFLG.4LB.PUR.62.5/125 - to your desired length (0.5m steps)
Part No. Weight
Fibre diameter (d) max. CFLG.LB.PUR chainflex series .4 Number of fibres .62.5/125 Fibre diameter
®
[mm] [kg/km]
CFLG.2LB.PUR.62.5/125 2x62.5/125 8.5 62 Order online  www.igus-asean.com/CFLGLBPUR
CFLG.4LB.PUR.62.5/125 4x62.5/125 9.0 68
CFLG.6LB.PUR.62.5/125 11) 6x62.5/125 11.0 96 Delivery time 24hrs or today.
CFLG.12LB.PUR.62.5/125 12x62.5/125 14.0 150 Delivery time means time until goods are shipped.
CFLG.6LB.PUR.50/125 6x50/125 11.0 95
CFLG.12LB.PUR.50/125 12x50/125 14.0 160
CFLG.6LB.PUR.9/125 6x9/125 11.0 95

®
11) Phase-out model Cables available in the chainflex CASE
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
Simple savings on delivery, storage space and re-ordering with
the chainflex CASE - ship'n store by igus .
®
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case
Bandwidth Attenuation Bandwidth Attenuation
Part No. [MHz x km] [dB/km] [MHz x km] [dB/km] Fibre identification
@ 850nm @ 850nm @ 1,300nm @ 1,300nm
CFLG.2LB.PUR.62.5/125 ≥ 200 ≤ 3.5 ≥ 500 ≤ 1.5 orange with black numbers
CFLG.4LB.PUR.62.5/125 ≥ 200 ≤ 3.5 ≥ 500 ≤ 1.5 orange with black numbers
CFLG.6LB.PUR.62.5/125 ≥ 200 ≤ 3.5 ≥ 500 ≤ 1.5 orange with black numbers
CFLG.12LB.PUR.62.5/125 ≥ 200 ≤ 3.0 ≥ 500 ≤ 0.7 orange with black numbers
CFLG.6LB.PUR.50/125 ≥ 500 ≤ 3.0 ≥ 500 ≤ 1.0 blue with black numbers
CFLG.12LB.PUR.50/125 ≥ 200 ≤ 3.0 ≥ 500 ≤ 1.0 blue with black numbers

Chromatic Chromatic
Attenuation Attenuation
dispersion
dispersion
Part No. [dB/km] [ps/nm/km] [dB/km] [ps/nm/km] Fibre identification
@ 1,310nm @ 1,550nm
@ 1,310nm @ 1,550nm
CFLG.6LB.PUR.9/125 ≤ 0.35 3.5 ≤ 0.25 18 yellow with black numbers

EPLAN download, configurators  www.igus-asean.com/CFLGLBPUR
