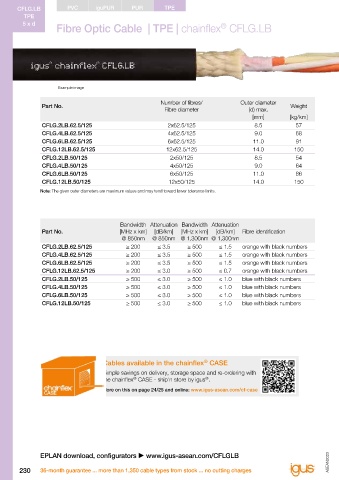

CFLG.LB PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFLG.LB
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
5 x d ® Oil resistance none 1 2 3 4 highest 5 x d
Fibre Optic Cable | TPE | chainflex CFLG.LB Class 7.5.4.1 Torsion none 1 2 3 4 ±360°

Example image

Number of fibres/ Outer diameter Order example: CFLG.4LB.62.5/125 - to your desired length (0.5m steps)
Part No. Weight
Fibre diameter (d) max. CFLG.LB chainflex series .4 Number of fibres .62.5/125 Fibre diameter
®
[mm] [kg/km]
CFLG.2LB.62.5/125 2x62.5/125 8.5 57 Order online  www.igus-asean.com/CFLGLB
CFLG.4LB.62.5/125 4x62.5/125 9.0 68
CFLG.6LB.62.5/125 6x62.5/125 11.0 91 Delivery time 24hrs or today.
CFLG.12LB.62.5/125 12x62.5/125 14.0 150 Delivery time means time until goods are shipped.
CFLG.2LB.50/125 2x50/125 8.5 54
CFLG.4LB.50/125 4x50/125 9.0 64
CFLG.6LB.50/125 6x50/125 11.0 86
CFLG.12LB.50/125 12x50/125 14.0 150
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.

Bandwidth Attenuation Bandwidth Attenuation
Part No. [MHz x km] [dB/km] [MHz x km] [dB/km] Fibre identification
@ 850nm @ 850nm @ 1,300nm @ 1,300nm
CFLG.2LB.62.5/125 ≥ 200 ≤ 3.5 ≥ 500 ≤ 1.5 orange with black numbers
CFLG.4LB.62.5/125 ≥ 200 ≤ 3.5 ≥ 500 ≤ 1.5 orange with black numbers
CFLG.6LB.62.5/125 ≥ 200 ≤ 3.5 ≥ 500 ≤ 1.5 orange with black numbers
CFLG.12LB.62.5/125 ≥ 200 ≤ 3.0 ≥ 500 ≤ 0.7 orange with black numbers
CFLG.2LB.50/125 ≥ 500 ≤ 3.0 ≥ 500 ≤ 1.0 blue with black numbers
CFLG.4LB.50/125 ≥ 500 ≤ 3.0 ≥ 500 ≤ 1.0 blue with black numbers
CFLG.6LB.50/125 ≥ 500 ≤ 3.0 ≥ 500 ≤ 1.0 blue with black numbers
CFLG.12LB.50/125 ≥ 500 ≤ 3.0 ≥ 500 ≤ 1.0 blue with black numbers

®
chainflex fibre optic cable on an STS crane
®
Cables available in the chainflex CASE
Simple savings on delivery, storage space and re-ordering with
®
the chainflex CASE - ship'n store by igus .
®
More on this on page 24/25 and online: www.igus-asean.com/cf-case

EPLAN download, configurators  www.igus-asean.com/CFLGLB
