CFLG.G PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFLG.G
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d

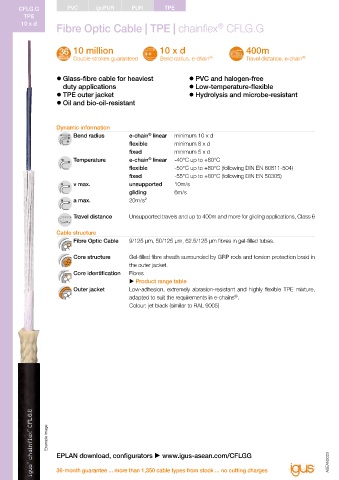

Fibre Optic Cable | TPE | chainflex CFLG.G Class 7.6.4.1 Torsion none 1 2 3 4 ±360°

10 million 10 x d 400m Properties and approvals High
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 60811-404), bio-oil-resistant (following VDMA
z Glass-fibre cable for heaviest z PVC and halogen-free 24568 with Plantocut 8 S-MB tested by DEA), Class 4
duty applications z Low-temperature-flexible Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z TPE outer jacket z Hydrolysis and microbe-resistant 1992)
z Oil and bio-oil-resistant Halogen-free Following DIN EN 60754

UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
Dynamic information service life calculator based on 2 billion test cycles per year"
Bend radius e-chain linear minimum 10 x d REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
®
flexible minimum 8 x d
fixed minimum 5 x d Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
Temperature e-chain linear -40°C up to +80°C
®
flexible -50°C up to +80°C (following DIN EN 60811-504) Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
fixed -55°C up to +80°C (following DIN EN 50305) CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
v max. unsupported 10m/s CE Following 2014/35/EU
gliding 6m/s
a max. 20m/s² UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

Travel distance Unsupported travels and up to 400m and more for gliding applications, Class 6 Info For hanging applications, please use cables of the series CFLG.LB - see page
228!
Cable structure
Fibre Optic Cable 9/125 µm, 50/125 µm, 62.5/125 µm fibres in gel-filled tubes. Guaranteed service life (details see page 28-29)

Double strokes* 5 million 7.5 million 10 million
Core structure Gel-filled fibre sheath surrounded by GRP rods and torsion protection braid in Temperature, R min. R min. R min.
the outer jacket. from/to [°C] [factor x d] [factor x d] [factor x d]
Core identification Fibres -40/-30 12.5 13.5 14.5
 Product range table -30/+70 10 11 12
Outer jacket Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, +70/+80 12.5 13.5 14.5
®
adapted to suit the requirements in e-chains . * Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Colour: jet black (similar to RAL 9005)

Typical application areas
z For heavy-duty applications, Class 7
z Unsupported travels and up to 400m and more for gliding applications (horizontal), Class 6
z Almost unlimited resistance to oil, also with bio-oils, Class 4
z No torsion, Class 1
z Maximum EMC protection, with high transmission qualities
z Indoor and outdoor applications
z Crane applications, conveyor technology, low temperature applications

Example image

EPLAN download, configurators  www.igus-asean.com/CFLGG
