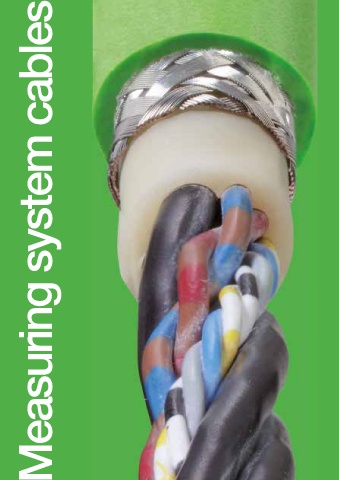

Measuring system cables

chainflex ® cable Jacket Shield Bend radius e-chain ® [factor x d] Temperature e-chain ® from/to [°C] Approvals and standards Oil-resistant Torsion-resistant v max. [m/s] unsupported v max. [m/s] gliding a max. Page

Measuring system cables

®
Selection chart for chainflex measuring system cables 240

CF884 PVC  15 +5/+70 3 20 242

CF211 PVC  10 +5/+70  5 3 30 246 New

CF894 iguPUR  15 -20/+80  3 20 252

CF111.D PUR  10 -25/+80  5 3 30 256 New

CF113.D PUR  7.5 -25/+80  10 5 50 262

CF11.D TPE  6.8 -35/+90  10 6 100 268

Twistable measuring system cable (twistable cables chapter Page 378 )

CFROBOT4 PUR  10 -25/+80   392

36-month chainflex guarantee
®
Guaranteed service life for predictable reliability
 Selection table page 238
®
With the help of the chainflex service life calculator, you can quickly and easily
®
calculate the expected service life of chainflex cables specifically for your application:
ASEAN2023 www.igus-asean.com/chainflexlife ® 237
