CFLG.G PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFLG.G
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
10 x d ® Oil resistance none 1 2 3 4 highest 10 x d

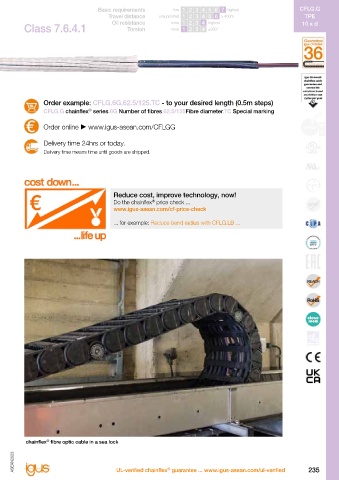

Fibre Optic Cable | TPE | chainflex CFLG.G Class 7.6.4.1 Torsion none 1 2 3 4 ±360°

Example image

Number of fibres/ Outer diameter Order example: CFLG.6G.62.5/125.TC - to your desired length (0.5m steps)
Part No. Weight
Fibre diameter (d) max. CFLG.G chainflex series.6G Number of fibres.62.5/125Fibre diameter.TC Special marking
®
[mm] [kg/km]
CFLG.6G.62.5/125.TC 6x62.5/125 10.0 80 Order online  www.igus-asean.com/CFLGG
CFLG.12G.62.5/125.TC 12x62.5/125 10.0 80
CFLG.6G.50/125.TC 11) 6x50/125 10.0 60 Delivery time 24hrs or today.
CFLG.12G.50/125.TC 12x50/125 10.0 75 Delivery time means time until goods are shipped.
CFLG.12E.9/125.TC 12x9/125 10.0 75
11) Phase-out model
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.

Bandwidth Attenuation Bandwidth Attenuation Reduce cost, improve technology, now!
Part No. [MHz x km] [dB/km] [MHz x km] [dB/km] Do the chainflex price check ...
®
@ 850nm @ 850nm @ 1,300nm @ 1,300nm www.igus-asean.com/cf-price-check
CFLG.6G.62.5/125.TC ≥ 200 ≤ 3.5 ≥ 500 ≤ 1.0
CFLG.12G.62.5/125.TC ≥ 200 ≤ 3.5 ≥ 500 ≤ 1.0 ... for example: Reduce bend radius with CFLG.LB ...
CFLG.6G.50/125.TC ≥ 500 ≤ 3.0 ≥ 500 ≤ 1.0
CFLG.12G.50/125.TC ≥ 500 ≤ 3.0 ≥ 500 ≤ 1.0

Chromatic Chromatic
Attenuation Attenuation
dispersion
dispersion
Part No. [dB/km] [ps/nm/km] [dB/km] [ps/nm/km]
@ 1,310nm @ 1,550nm
@ 1,310nm @ 1,550nm
CFLG.12E.9/125.TC ≤ 0.35 3.5 ≤ 0.25 18

Hollow core
Part No. Fibre identification
identification
CFLG.6G.62.5/125.TC ecru, yellow, green, red, violet, blue orange
CFLG.12G.62.5/125.TC ecru, yellow, green, red, violet, blue, turquoise, grey, orange
brown, black, orange, pink
CFLG.6G.50/125.TC ecru, yellow, green, red, violet, blue blue
CFLG.12G.50/125.TC ecru, yellow, green, red, violet, blue, turquoise, grey, blue
brown, black, orange, pink
CFLG.12E.9/125.TC ecru, yellow, green, red, violet, blue, turquoise, grey, yellow
brown, black, orange, pink

®
Cables available in the chainflex CASE
Simple savings on delivery, storage space and re-ordering with
®
®
the chainflex CASE - ship'n store by igus .
More on this on page 24/25 and online: www.igus-asean.com/cf-case
®
chainflex fibre optic cable in a sea lock
EPLAN download, configurators  www.igus-asean.com/CFLGG
