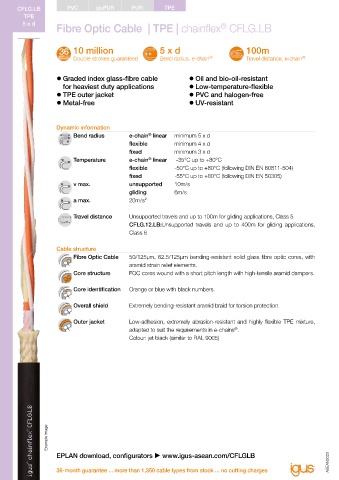

CFLG.LB PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFLG.LB
TPE Travel distance unsupported 1 2 3 4 5 6 ≥ 400m TPE
5 x d ® Oil resistance none 1 2 3 4 highest 5 x d
Fibre Optic Cable | TPE | chainflex CFLG.LB Class 7.5.4.1 Torsion none 1 2 3 4 ±360°

10 million 5 x d 100m Properties and approvals High
UV resistance
Double strokes guaranteed Bend radius, e-chain ® Travel distance, e-chain ®

Oil resistance Oil-resistant (following DIN EN 60811-404), bio-oil-resistant (following VDMA
z Graded index glass-fibre cable z Oil and bio-oil-resistant 24568 with Plantocut 8 S-MB tested by DEA), Class 4
for heaviest duty applications z Low-temperature-flexible Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z TPE outer jacket z PVC and halogen-free 1992)
z Metal-free z UV-resistant Halogen-free Following DIN EN 60754

UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
Dynamic information service life calculator based on 2 billion test cycles per year"
Bend radius e-chain linear minimum 5 x d REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
®
flexible minimum 4 x d
fixed minimum 3 x d Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
Temperature e-chain linear -35°C up to +80°C
®
flexible -50°C up to +80°C (following DIN EN 60811-504) Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
fixed -55°C up to +80°C (following DIN EN 50305) CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
v max. unsupported 10m/s CE Following 2014/35/EU
gliding 6m/s
a max. 20m/s² UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

Travel distance Unsupported travels and up to 100m for gliding applications, Class 5
CFLG.12.LB:Unsupported travels and up to 400m for gliding applications, Guaranteed service life (details see page 28-29)
Class 6 Double strokes* 5 million 7.5 million 10 million

Temperature, R min. R min. R min.
Cable structure from/to [°C] [factor x d] [factor x d] [factor x d]
Fibre Optic Cable 50/125μm, 62.5/125μm bending-resistant solid glass fibre optic cores, with -35/-25 7.5 8.5 9.5
aramid strain relief elements. -25/+70 5 6 7
Core structure FOC cores wound with a short pitch length with high-tensile aramid dampers. +70/+80 7.5 8.5 9.5
* Higher number of double strokes? Service life calculation online  www.igus-asean.com/chainflexlife
Core identification Orange or blue with black numbers.
Typical application areas
Overall shield Extremely bending-resistant aramid braid for torsion protection. z For heaviest duty applications with 5-7.5 x d, Class 7
z Unsupported travels and up to 100m for gliding applications (horizontal + vertical), Class 5,
Outer jacket Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, CFLG.12.LB: Unsupported travels and up to 400m in gliding applications (horizontal + vertical), Class 6
adapted to suit the requirements in e-chains . z Almost unlimited resistance to oil, also with bio-oils, Class 4
®
Colour: jet black (similar to RAL 9005) z No torsion, Class 1
z Maximum EMC protection, with high transmission qualities
z Indoor and outdoor applications
z Crane applications, conveyor technology, storage and retrieval units, processing/
packaging machines, fast handling, semiconductor assembly, refrigeration area

Example image

EPLAN download, configurators  www.igus-asean.com/CFLGLB
