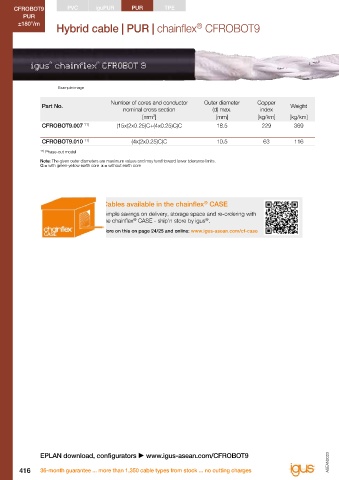

Page 422 - ASEAN Chainflex Catalogue 2023

CFROBOT9 PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFROBOT9
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
±180°/m ® Oil resistance none 1 2 3 4 highest ±180°/m
Hybrid cable | PUR | chainflex CFROBOT9 Class 6.1.3.3 Torsion none 1 2 3 4 ±360°

Example image

Number of cores and conductor Outer diameter Copper
Part No. Weight Part No. Core group Colour code
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
CFROBOT9.007 11) (15x(2x0.25)C+(4x0.25)C)C 18.5 229 369 CFROBOT9.007 11) 15x(2x0.25)C colour code in accordance with DIN 47100
(4x0.25)C white/green/brown/yellow (CAN-Bus)
CFROBOT9.010 11) (4x(2x0.25)C)C 10.5 63 116 CFROBOT9.010 11) 4x(2x0.25)C white/brown, green/yellow, grey/pink, blue/red

11) Phase-out model
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Cables available in the chainflex CASE
®
Simple savings on delivery, storage space and re-ordering with
®
®
the chainflex CASE - ship'n store by igus .
More on this on page 24/25 and online: www.igus-asean.com/cf-case

®
®
®
igus chainflex cables in a triflex R multi-dimensionally
moving energy supply system for 6-axis robots

EPLAN download, configurators  www.igus-asean.com/CFROBOT9
