Page 426 - ASEAN Chainflex Catalogue 2023

CFTHERMO PVC iguPUR PUR TPE Basic requirements low 1 2 3 4 5 6 7 highest CFTHERMO
PUR Travel distance unsupported 1 2 3 4 5 6 ≥ 400m PUR
12.5 x d ® Oil resistance none 1 2 3 4 highest 12.5 x d

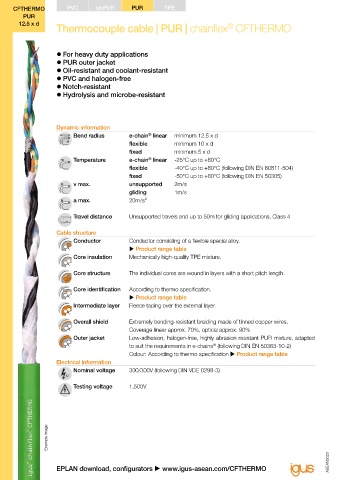

Thermocouple cable | PUR | chainflex CFTHERMO Class 5.4.3.1 Torsion none 1 2 3 4 ±360°

Properties and approvals
z For heavy duty applications UV resistance Medium
z PUR outer jacket
z Oil-resistant and coolant-resistant Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3
z PVC and halogen-free
z Notch-resistant Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z Hydrolysis and microbe-resistant 1992)
Halogen-free Following DIN EN 60754

UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
Dynamic information service life calculator based on 2 billion test cycles per year"
®
Bend radius e-chain linear minimum 12.5 x d EAC Certificate No. RU C-DE.ME77.B.00300/19
flexible minimum 10 x d
fixed minimum 5 x d REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
®
Temperature e-chain linear -25°C up to +80°C
flexible -40°C up to +80°C (following DIN EN 60811-504) Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
fixed -50°C up to +80°C (following DIN EN 50305)
v max. unsupported 2m/s Cleanroom According to ISO Class 1. The outer jacket material of this series complies with
gliding 1m/s CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
a max. 20m/s² CE Following 2014/35/EU

Travel distance Unsupported travels and up to 50m for gliding applications, Class 4 UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

Cable structure
Conductor Conductor consisting of a flexible special alloy. Typical application areas
u Product range table z For heavy-duty applications, Class 5
Core insulation Mechanically high-quality TPE mixture. z Unsupported travels and up to 50m for gliding applications, Class 4
z Almost unlimited resistance to oil, Class 3
Core structure The individual cores are wound in layers with a short pitch length. z No torsion, Class 1
z Indoor and outdoor applications with average sun radiation
Core identification According to thermo specification. z Machining units/machine tools, storage and retrieval units for high-bay
u Product range table warehouses, packaging industry, quick handling, refrigerating sector
Intermediate layer Fleece taping over the external layer.

Overall shield Extremely bending-resistant braiding made of tinned copper wires. Part No. Number of cores and conductor Outer diameter Copper Weight
Coverage linear approx. 70%, optical approx. 90% nominal cross section (d) max. index
Outer jacket Low-adhesion, halogen-free, highly abrasion resistant PUR mixture, adapted [mm²] [mm] [kg/km] [kg/km]
®
to suit the requirements in e-chains (following DIN EN 50363-10-2) CFTHERMO.J.001 (2x0.23)C 5.5 9 36
Colour: According to thermo specification u Product range table CFTHERMO.K.001 (2x0.23)C 5.5 9 37
Electrical information CFTHERMO.K.002 * (2x0.23)C+3G0.5 7.5 24 67
Nominal voltage 300/300V (following DIN VDE 0298-3) * The cross-section of the copper conductor is equivalent to the electrically effective cross-section.
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
Testing voltage 1,500V G = with green-yellow earth core x = without earth core

Part No. Jacket colour Thermo materials Core group Colour code
CFTHERMO.J.001 * black Fe-CuNi (2x0.23)C + black, - white
CFTHERMO.K.001 green NiCr-Ni (2x0.23)C + green, - white
NiCr-Ni
(2x0.23)C
+ green, - white
green
CFTHERMO.K.002
Example image Cu 3G0.5 brown, blue, yellow-green
ASEAN2023 ASEAN2023

420 EPLAN download, configurators u www.igus-asean.com/CFTHERMO 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges 421
