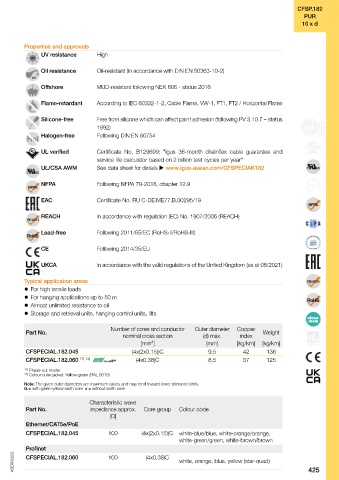

Page 431 - ASEAN Chainflex Catalogue 2023

CFSP.182 PVC iguPUR PUR TPE CFSP.182
PUR PUR
10 x d 10 x d
Bus cable for hanging applications | PUR

®
chainflex CFSPECIAL.182 Properties and approvals
UV resistance High
z For high tensile loads
z PUR outer jacket Oil resistance Oil-resistant (in accordance with DIN EN 50363-10-2)
z Shielded
z Oil-resistant and coolant-resistant Offshore MUD-resistant following NEK 606 - status 2016
z Flame-retardant
z PVC and halogen-free Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z Notch-resistant
z Hydrolysis and microbe-resistant Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
1992)
Dynamic information Halogen-free Following DIN EN 60754
®
Bend radius e-chain linear minimum 10 x d
flexible minimum 8 x d UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
fixed minimum 5 x d service life calculator based on 2 billion test cycles per year"
®
Temperature e-chain linear -25°C up to +80°C UL/CSA AWM See data sheet for details u www.igus-asean.com/CFSPECIAK182
flexible -40°C up to +80°C (following DIN EN 60811-504)
fixed -50°C up to +80°C (following DIN EN 50305) NFPA Following NFPA 79-2018, chapter 12.9
v max. unsupported 10m/s
gliding 6m/s EAC Certificate No. RU C-DE.ME77.B.00295/19
a max. 100m/s²
REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
Travel distance For hanging applications up to 50 m
Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
Cable structure
Conductor Stranded conductor in especially bending-resistant version consisting of bare CE Following 2014/35/EU
copper wires (following DIN EN 60228).
Core insulation According to bus specification. UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)

Core structure According to bus specification. Typical application areas
z For high tensile loads
Core identification According to bus specification. z For hanging applications up to 50 m
z Almost unlimited resistance to oil
Inner jacket TPE mixture adapted to suit the requirements in e-chains . z Storage and retrieval units, hanging control units, lifts
®

Overall shield Bending-resistant braiding made of tinned copper wires. Part No. Number of cores and conductor Outer diameter Copper Weight
Coverage linear approx. 70%, optical approx. 90% nominal cross section (d) max. index
Outer jacket 1. Outer jacket: PUR mixture adapted to suit the requirements in e-chains . [mm²] [mm] [kg/km] [kg/km]
®
Reinforcement: High tensile strength aramid braid embedded in the outer jacket. CFSPECIAL.182.045 (4x(2x0.15))C 9.5 42 136
2. Outer jacket: Low-adhesion, halogen-free PUR mixture, highly abrasion and CFSPECIAL.182.060 11) 13) (4x0.38)C 8.5 37 125
bending-resistant, adapted to suit the requirements in hanging applications 11) Phase-out model
13) Colour outer jacket: Yellow-green (RAL 6018)
(following DIN EN 50363-10-2).
Colour: jet black (similar to RAL 9005) Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
Electrical information
Nominal voltage 50V Characteristic wave
300V (following UL) Part No. impedance approx. Core group Colour code
Testing voltage 500V Ethernet/CAT5e/PoE [Ω]
Example image CFSPECIAL.182.045 100 (4x(2x0.15))C white-blue/blue, white-orange/orange,

white-green/green, white-brown/brown
Profinet
ASEAN2023 ASEAN2023 CFSPECIAL.182.060 100 (4x0.38)C white, orange, blue, yellow (star-quad)

EPLAN download, configurators u www.igus-asean.com/CFSPECIAL182 425
