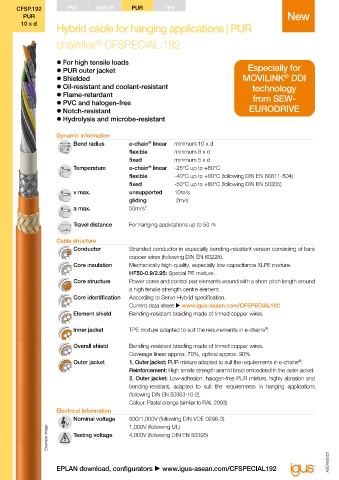

Page 432 - ASEAN Chainflex Catalogue 2023

CFSP.192 PVC iguPUR PUR TPE CFSP.192
PUR New PUR
10 x d 10 x d
Hybrid cable for hanging applications | PUR

chainflex CFSPECIAL.192 Properties and approvals
®
Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3
z For high tensile loads
z PUR outer jacket Especially for Offshore MUD-resistant following NEK 606 - status 2016
®
z Shielded MOVILINK DDI
z Oil-resistant and coolant-resistant technology Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z Flame-retardant from SEW-
z PVC and halogen-free Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z Notch-resistant EURODRIVE 1992)
z Hydrolysis and microbe-resistant Halogen-free Following DIN EN 60754

Dynamic information UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
®
Bend radius e-chain linear minimum 10 x d service life calculator based on 2 billion test cycles per year"
flexible minimum 8 x d UL/CSA AWM See data sheet for details u www.igus-asean.com/CFSPECIAL192
fixed minimum 5 x d
Temperature e-chain linear -25°C up to +80°C NFPA Following NFPA 79-2018, chapter 12.9
®
flexible -40°C up to +80°C (following DIN EN 60811-504)
fixed -50°C up to +80°C (following DIN EN 50305) REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
v max. unsupported 10m/s
gliding 2m/s Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
a max. 50m/s²
DESINA According to VDW, DESINA standardisation
Travel distance For hanging applications up to 50 m
CE Following 2014/35/EU
Cable structure
Conductor Stranded conductor in especially bending-resistant version consisting of bare UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
copper wires (following DIN EN 60228).
Core insulation Mechanically high-quality, especially low-capacitance XLPE mixture.
HF50-0.9/2.95: Special PE mixture.
Core structure Power cores and control pair elements wound with a short pitch length around Typical application areas
a high tensile strength centre element. z For high tensile loads
Core identification According to Servo-Hybrid specification. z For hanging applications up to 50 m
Current data sheet u www.igus-asean.com/CFSPECIAL192 z Almost unlimited resistance to oil
Element shield Bending-resistant braiding made of tinned copper wires. z Storage and retrieval units, hanging control units, lifts

®
Inner jacket TPE mixture adapted to suit the requirements in e-chains .
Number of cores and conductor Outer diameter Copper
Part No. Weight
Overall shield Bending-resistant braiding made of tinned copper wires. nominal cross section (d) max. index
Coverage linear approx. 70%, optical approx. 90% [mm²] [mm] [kg/km] [kg/km]
Outer jacket 1. Outer jacket: PUR mixture adapted to suit the requirements in e-chains . CFSPECIAL.192.H207.15.04 (4G1.5+2x(2x1.0)C 17.0 199 377
®
Reinforcement: High tensile strength aramid braid embedded in the outer jacket. +HF50-0.9/2.95)C
2. Outer jacket: Low-adhesion, halogen-free PUR mixture, highly abrasion and Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
bending-resistant, adapted to suit the requirements in hanging applications G = with green-yellow earth core x = without earth core
(following DIN EN 50363-10-2).
Colour: Pastel orange (similar to RAL 2003)
Electrical information
Nominal voltage 600/1,000V (following DIN VDE 0298-3)
1,000V (following UL)
Example image Testing voltage 4,000V (following DIN EN 50395)

ASEAN2023 ASEAN2023

EPLAN download, configurators u www.igus-asean.com/CFSPECIAL192 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges 427
