CFSP.484 CFSP.484
12.5 x d 12.5 x d
Bus cable for rail vehicles

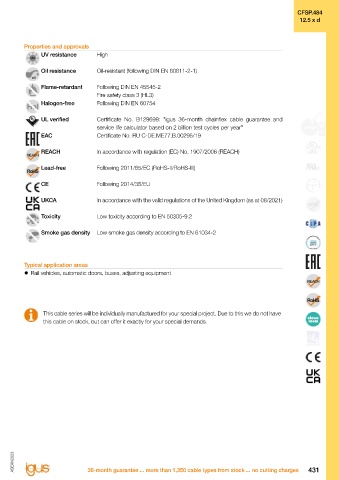

chainflex CFSPECIAL.484 Properties and approvals
®
UV resistance High

z For heaviest duty applications Oil resistance Oil-resistant (following DIN EN 60811-2-1)
in rail vehicles Especially for rail
z Special outer jacket Flame-retardant Following DIN EN 45545-2
z PVC and halogen-free vehicles Fire safety class 3 (HL3)
z Oil-resistant Halogen-free Following DIN EN 60754
z Flame-retardant
z Self-extinguishing UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
z Low toxicity service life calculator based on 2 billion test cycles per year"
z Low gas density EAC Certificate No. RU C-DE.ME77.B.00295/19

REACH In accordance with regulation (EC) No. 1907/2006 (REACH)

Dynamic information Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
®
Bend radius e-chain linear minimum 12.5 x d
flexible minimum 10 x d CE Following 2014/35/EU
fixed minimum 7 x d
®
Temperature e-chain linear -20°C up to +80°C UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
flexible -25°C up to +80°C (following DIN EN 60811-504)
fixed -30°C up to +80°C (following DIN EN 50305) Toxicity Low toxicity according to EN 50305-9.2
v max. unsupported 10m/s
Smoke gas density Low smoke gas density according to EN 61034-2
a max. 20m/s²

Travel distance For unsupported travel lengths up to 100m
Typical application areas
Cable structure z Rail vehicles, automatic doors, buses, adjusting equipment
Conductor Fine-wire stranded conductor in especially bending-resistant version consisting
of bare copper wires (following DIN EN 60228).
Core insulation According to bus specification.

Core structure According to bus specification. This cable series will be individually manufactured for your special project. Due to this we do not have
this cable on stock, but can offer it exactly for your special demands.
Core identification According to bus specification.

®
Inner jacket TPE mixture adapted to suit the requirements in e-chains .
Overall shield Extremely bending-resistant braiding made of tinned copper wires.
Coverage linear approx. 70%, optical approx. 90%
®
Outer jacket Special mixture adapted to suit the requirements in e-chains (following DIN
EN 50264-1 EM 104).
Colour: jet black (similar to RAL 9005)
Electrical information
Nominal voltage 50V

Example image Testing voltage 500V

ASEAN2023 ASEAN2023

430 EPLAN download, configurators u www.igus-asean.com/CFSPECIAL.484 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges 431
