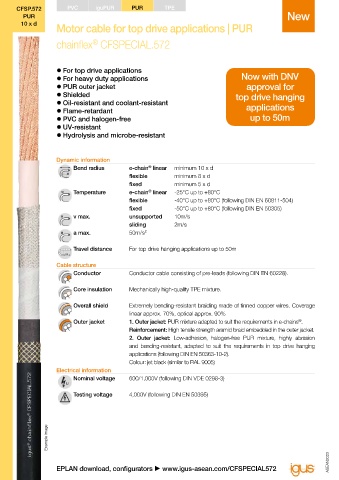

Motor cable for top drive applications | PUR
®
chainflex CFSPECIAL.572 Properties and approvals
UV resistance High

z For top drive applications Oil resistance Oil-resistant (in accordance with DIN EN 50363-10-2)
z For heavy duty applications Now with DNV
z PUR outer jacket approval for Offshore MUD-resistant following NEK 606 - status 2016
z Shielded top drive hanging
z Oil-resistant and coolant-resistant applications Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z Flame-retardant
z PVC and halogen-free up to 50m Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z UV-resistant 1992)
z Hydrolysis and microbe-resistant Halogen-free Following DIN EN 60754

UL verified Certificate No. B129699: „igus 36-month chainflex cable guarantee and service
Dynamic information life calculator based on 2 billion test cycles per year“
Bend radius e-chain linear minimum 10 x d UL/CSA AWM See data sheet for details u www.igus-asean.com/CFSPECIAL572
®
flexible minimum 8 x d
fixed minimum 5 x d NFPA Following NFPA 79-2018, chapter 12.9
®
Temperature e-chain linear -25°C up to +80°C
flexible -40°C up to +80°C (following DIN EN 60811-504) DNV Type Approval Certificate TAE00004G3
fixed -50°C up to +80°C (following DIN EN 50305)
v max. unsupported 10m/s REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
sliding 2m/s
a max. 50m/s² Lead-free Following 2011/65/EC (RoHS-II)

Travel distance For top drive hanging applications up to 50m CE Following 2014/35/EU

Cable structure UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Conductor Conductor cable consisting of pre-leads (following DIN EN 60228).

Core insulation Mechanically high-quality TPE mixture.
Typical application areas
Overall shield Extremely bending-resistant braiding made of tinned copper wires. Coverage z For high tensile loads
linear approx. 70%, optical approx. 90% z Almost unlimited resistance to oil
Outer jacket 1. Outer jacket: PUR mixture adapted to suit the requirements in e-chains . z For top drive hanging applications up to 50m
®
Reinforcement: High tensile strength aramid braid embedded in the outer jacket.
2. Outer jacket: Low-adhesion, halogen-free PUR mixture, highly abrasion
and bending-resistant, adapted to suit the requirements in top drive hanging Part No. Number of cores and conductor Outer diameter Copper Weight
applications (following DIN EN 50363-10-2). nominal cross section (d) max. index
Colour: jet black (similar to RAL 9005) [mm²] [mm] [kg/km] [kg/km]
Electrical information CFSPECIAL.572.2400.01 (1x240)C 34.5 2581 3081
Nominal voltage 600/1,000V (following DIN VDE 0298-3) CFSPECIAL.572.3000.01 (1x300)C 37.5 3189 3799
CFSPECIAL.572.4000.01 (1x400)C 42.0 4269 5007

Testing voltage 4,000V (following DIN EN 50395) Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core

Example image
