Page 445 - ASEAN Chainflex Catalogue 2023

CFSP.592 PVC iguPUR PUR TPE CFSP.592
PUR New PUR
10 x d 10 x d
Hybrid cable for top drive applications | PUR

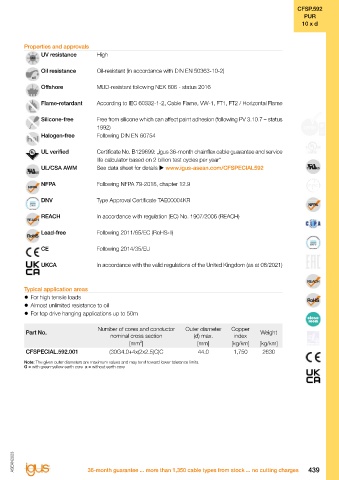

chainflex CFSPECIAL.592 Properties and approvals
®
UV resistance High

z For top drive applications Oil resistance Oil-resistant (in accordance with DIN EN 50363-10-2)
z For heavy duty applications Now with DNV
z PUR outer jacket approval for Offshore MUD-resistant following NEK 606 - status 2016
z Shielded top drive hanging
z Oil-resistant and coolant-resistant applications Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
z Flame-retardant
z PVC and halogen-free up to 50m Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
z UV-resistant 1992)
z Hydrolysis and microbe-resistant Halogen-free Following DIN EN 60754

UL verified Certificate No. B129699: „igus 36-month chainflex cable guarantee and service
Dynamic information life calculator based on 2 billion test cycles per year“
Bend radius e-chain linear minimum 10 x d UL/CSA AWM See data sheet for details u www.igus-asean.com/CFSPECIAL592
®
flexible minimum 8 x d
fixed minimum 5 x d NFPA Following NFPA 79-2018, chapter 12.9
®
Temperature e-chain linear -25°C up to +80°C
flexible -40°C up to +80°C (following DIN EN 60811-504) DNV Type Approval Certificate TAE00004KR
fixed -50°C up to +80°C (following DIN EN 50305)
v max. unsupported 10m/s REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
sliding 2m/s
a max. 50m/s² Lead-free Following 2011/65/EC (RoHS-II)

Travel distance For top drive hanging applications up to 50m CE Following 2014/35/EU

Cable structure UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Conductor Stranded conductor in especially bending-resistant version consisting of bare
copper wires (following DIN EN 60228).
Core insulation Mechanically high-quality, especially low-capacitance XLPE mixture. Typical application areas
z For high tensile loads
Inner jacket Mechanically high-quality TPE mixture. z Almost unlimited resistance to oil
z For top drive hanging applications up to 50m
Overall shield Extremely bending-resistant braiding made of tinned copper wires. Coverage
linear approx. 70%, optical approx. 90% Part No. Number of cores and conductor Outer diameter Copper Weight
®
Outer jacket 1. Outer jacket: PUR mixture adapted to suit the requirements in e-chains . nominal cross section (d) max. index
Reinforcement: High tensile strength aramid braid embedded in the outer jacket. [mm²] [mm] [kg/km] [kg/km]
2. Outer jacket: Low-adhesion, halogen-free PUR mixture, highly abrasion CFSPECIAL.592.001 (30G4.0+4x(2x2.5)C)C 44.0 1,750 2630
and bending-resistant, adapted to suit the requirements in top drive hanging Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
applications (following DIN EN 50363-10-2). G = with green-yellow earth core x = without earth core
Colour: jet black (similar to RAL 9005)
Electrical information
Nominal voltage 600/1,000V (following DIN VDE 0298-3)
1,000V (following UL)
Testing voltage 4,000V (following DIN EN 50395)

Example image

ASEAN2023 ASEAN2023

438 EPLAN download, configurators u www.igus-asean.com/CFSPECIAL592 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges 439
