CFSP.792 PVC iguPUR PUR TPE CFSP.792
PUR PUR
10 x d 10 x d
Cable for axis 7 on robots | PUR | CFSPECIAL.792

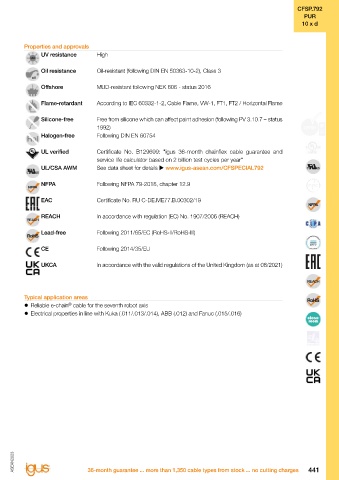

Properties and approvals
z PUR outer jacket UV resistance High
z Shielded
z Oil-resistant and coolant-resistant Oil resistance Oil-resistant (following DIN EN 50363-10-2), Class 3
z Flame-retardant
z PVC and halogen-free Offshore MUD-resistant following NEK 606 - status 2016
z Notch-resistant
z Hydrolysis and microbe-resistant Flame-retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame

Silicone-free Free from silicone which can affect paint adhesion (following PV 3.10.7 – status
Dynamic information 1992)
®
Bend radius e-chain linear minimum 10 x d Halogen-free Following DIN EN 60754
flexible minimum 8 x d
fixed minimum 5 x d UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
®
Temperature e-chain linear -25°C up to +80°C service life calculator based on 2 billion test cycles per year"
flexible -40°C up to +80°C (following DIN EN 60811-504) UL/CSA AWM See data sheet for details u www.igus-asean.com/CFSPECIAL792
fixed -50°C up to +80°C (following DIN EN 50305)
v max. unsupported 3m/s NFPA Following NFPA 79-2018, chapter 12.9
gliding 2m/s
a max. 20m/s² EAC Certificate No. RU C-DE.ME77.B.00302/19

Travel distance Unsupported travels and up to 100m for gliding applications, Class 5 REACH In accordance with regulation (EC) No. 1907/2006 (REACH)

Cable structure Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
Conductor Finely stranded conductor consisting of bare copper wires (following DIN EN
60228). CE Following 2014/35/EU
Core insulation Mechanically high-quality TPE mixture.
UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Core identification u Product range table

®
Inner jacket TPE mixture adapted to suit the requirements in e-chains .
Typical application areas
Overall shield Bending-resistant braiding made of tinned copper wires. z Reliable e-chain cable for the seventh robot axis
®
Coverage linear approx. 50%, optical approx. 80% z Electrical properties in line with Kuka (.011/.013/.014), ABB (.012) and Fanuc (.015/.016)
Outer jacket Low-adhesion, halogen-free, highly abrasion resistant PUR mixture, adapted
®
to suit the requirements in e-chains (following DIN EN 50363-10-2)
Colour: jet black (similar to RAL 9005)
Electrical information
Nominal voltage 600/1,000V (following DIN VDE 0298-3)
1,000V (following UL)
Testing voltage 4,000V (following DIN EN 50395)

Example image

ASEAN2023 ASEAN2023

440 EPLAN download, configurators u www.igus-asean.com/CFSPECIAL792 36-month guarantee ... more than 1,350 cable types from stock ... no cutting charges 441
