CFSP.792 PVC iguPUR PUR TPE CFSP.792
PUR PUR
10 x d 10 x d
Cable for axis 7 on robots | PUR | CFSPECIAL.792

Example image

Number of cores and conductor Outer diameter Copper

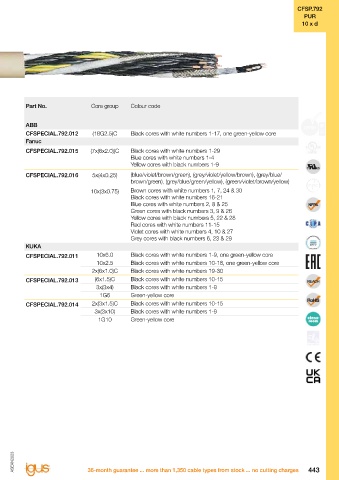

Part No. Weight Part No. Core group Colour code
nominal cross section (d) max. index
[mm²] [mm] [kg/km] [kg/km]
ABB ABB
CFSPECIAL.792.012 (18G2.5)C 25.5 545 882 CFSPECIAL.792.012 (18G2.5)C Black cores with white numbers 1-17, one green-yellow core
Fanuc Fanuc
CFSPECIAL.792.015 (7x(6x2.0))C 36.5 999 1747 CFSPECIAL.792.015 (7x(6x2.0))C Black cores with white numbers 1-29
Blue cores with white numbers 1-4
Yellow cores with black numbers 1-9

CFSPECIAL.792.016 (5x(4x0.25)+10x(3x0.75))C 26.5 422 877 CFSPECIAL.792.016 5x(4x0.25) (blue/violet/brown/green), (grey/violet/yellow/brown), (grey/blue/
brown/green), (grey/blue/green/yellow), (green/violet/brown/yellow)
10x(3x0.75) Brown cores with white numbers 1, 7, 24 & 30
Black cores with white numbers 16-21
Blue cores with white numbers 2, 8 & 25
Green cores with black numbers 3, 9 & 26
Yellow cores with black numbers 5, 22 & 28
Red cores with white numbers 11-15
Violet cores with white numbers 4, 10 & 27
Grey cores with black numbers 6, 23 & 29
KUKA KUKA
CFSPECIAL.792.011 (5x(2x6.0+2x2.5)+2x(6x1.0)C)C 35.5 1250 2033 CFSPECIAL.792.011 10x6.0 Black cores with white numbers 1-9, one green-yellow core
10x2.5 Black cores with white numbers 10-18, one green-yellow core
2x(6x1.0)C Black cores with white numbers 19-30
CFSPECIAL.792.013 ((6x1.5)C+3x(3x4)+1G6)C 28.0 679 1220 CFSPECIAL.792.013 (6x1.5)C Black cores with white numbers 10-15
3x(3x4) Black cores with white numbers 1-9
1G6 Green-yellow core
CFSPECIAL.792.014 (2x(3x1.5)C+3x(3x10)+1G10)C 35.5 1340 2122 CFSPECIAL.792.014 2x(3x1.5)C Black cores with white numbers 10-15
3x(3x10) Black cores with white numbers 1-9
1G10 Green-yellow core

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
