CFSP.414 CFSP.414
7.5 x d 7.5 x d
Control cable for rail vehicles

chainflex CFSPECIAL.414 Flame-retardant Following DIN EN 45545-2
®
Fire safety class 3 (HL3)
Halogen-free Following DIN EN 60754
z For heaviest duty applications
in rail vehicles Especially for rail UL verified Certificate No. B129699: "igus 36-month chainflex cable guarantee and
z Special outer jacket service life calculator based on 2 billion test cycles per year"
z PVC and halogen-free vehicles EAC Certificate No. RU C-DE.ME77.B.00300/19
z Oil-resistant
z Flame-retardant REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
z Self-extinguishing
z Low toxicity Lead-free Following 2011/65/EC (RoHS-II/RoHS-III)
z Low gas density
CE Following 2014/35/EU

UKCA In accordance with the valid regulations of the United Kingdom (as at 08/2021)
Dynamic information
®
Bend radius e-chain linear minimum 7.5 x d Toxicity Low toxicity according to EN 50305-9.2
flexible minimum 6 x d
fixed minimum 4 x d Smoke gas density Low smoke gas density according to EN 61034-2
®
Temperature e-chain linear -20°C up to +80°C
flexible -25°C up to +80°C (following DIN EN 60811-504)
fixed -30°C up to +80°C (following DIN EN 50305) Typical application areas
v max. unsupported 10m/s z Rail vehicles, automatic doors, buses, adjusting equipment

a max. 20m/s²

Travel distance For unsupported travel lengths up to 100m
This cable series will be individually manufactured for your special project. Due to this we do not have
Cable structure this cable on stock, but can offer it exactly for your special demands.
Conductor Fine-wire stranded conductor in especially bending-resistant version consisting
of bare copper wires (following DIN EN 60228).
Core insulation Mechanically high-quality special mixture.

Core identification Black cores with white numbers.

®
Outer jacket Special mixture adapted to suit the requirements in e-chains (following DIN
EN 50264-1 EM 104).
Colour: jet black (similar to RAL 9005)
Electrical information
Nominal voltage 300/500V

Testing voltage 2,000V

Properties and approvals
UV resistance High

®

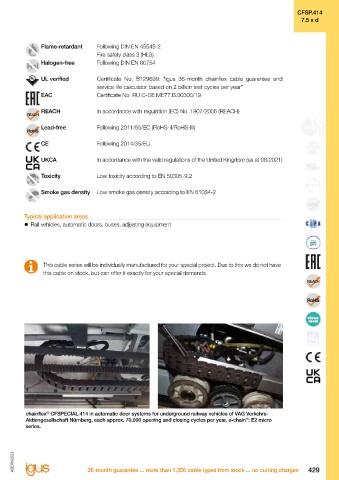

chainflex CFSPECIAL.414 in automatic door systems for underground railway vehicles of VAG Verkehrs-
Oil resistance Oil-resistant (following DIN EN 60811-2-1) Aktiengesellschaft Nürnberg, each approx. 70,000 opening and closing cycles per year. e-chain : E2 micro
®
Example image
series.
