Page 483 - ASEAN Chainflex Catalogue 2023

Camera Camera
CFKoax CFKoax
Harnessed coax cable | CFKoax

* Technical information on the cable quality:
TPE
Page 176

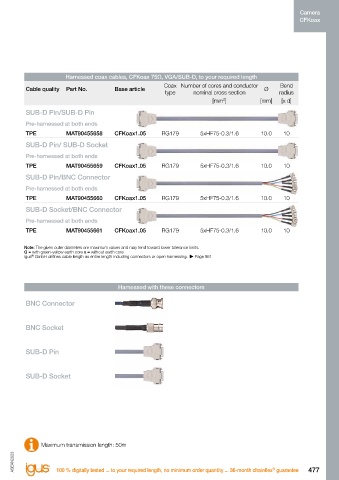

Harnessed Coax cables, CFKoax 75Ω, to your required length Harnessed coax cables, CFKoax 75Ω, VGA/SUB-D, to your required length
Coax Number of cores and conductor Bend Coax Number of cores and conductor Bend
Cable quality Part No. Base article Ø Cable quality Part No. Base article Ø
type nominal cross section radius type nominal cross section radius
[mm²] [mm] [x d] [mm²] [mm] [x d]

BNC Connector/Socket SUB-D Pin/SUB-D Pin
Pre-harnessed at both ends Pre-harnessed at both ends
TPE MAT90423400 CFKoax1.01 RG179 1xHF75-0.3/1.6 4.5 10 TPE MAT90455658 CFKoax1.05 RG179 5xHF75-0.3/1.6 10.0 10

BNC Connector/Connector SUB-D Pin/ SUB-D Socket
Pre-harnessed at both ends Pre-harnessed at both ends

TPE MAT90423401 CFKoax1.01 RG179 1xHF75-0.3/1.6 4.5 10 TPE MAT90455659 CFKoax1.05 RG179 5xHF75-0.3/1.6 10.0 10
BNC Socket/Socket SUB-D Pin/BNC Connector
Pre-harnessed at both ends Pre-harnessed at both ends

TPE MAT90423402 CFKoax1.01 RG179 1xHF75-0.3/1.6 4.5 10 TPE MAT90455660 CFKoax1.05 RG179 5xHF75-0.3/1.6 10.0 10
BNC Connector/open cable end SUB-D Socket/BNC Connector

Pre-harnessed at one end Pre-harnessed at both ends
TPE MAT90423403 CFKoax1.01 RG179 1xHF75-0.3/1.6 4.5 10 TPE MAT90455661 CFKoax1.05 RG179 5xHF75-0.3/1.6 10.0 10
BNC Socket/open cable end
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
Pre-harnessed at one end G = with green-yellow earth core x = without earth core
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
TPE MAT90423404 CFKoax1.01 RG179 1xHF75-0.3/1.6 4.5 10
BNC Connector/Socket

Pre-harnessed at both ends Harnessed with these connectors
TPE MAT90423405 CFKoax1.05 RG179 5xHF75-0.3/1.6 10.0 10
BNC Connector/Connector BNC Connector

Pre-harnessed at both ends
TPE MAT90423406 CFKoax1.05 RG179 5xHF75-0.3/1.6 10.0 10 BNC Socket
BNC Socket/Socket

Pre-harnessed at both ends SUB-D Pin
TPE MAT90423407 CFKoax1.05 RG179 5xHF75-0.3/1.6 10.0 10
BNC Connector/open cable end
SUB-D Socket
Pre-harnessed at one end
TPE MAT90423408 CFKoax1.05 RG179 5xHF75-0.3/1.6 10.0 10

BNC Socket/open cable end
Pre-harnessed at one end
TPE MAT90423409 CFKoax1.05 RG179 5xHF75-0.3/1.6 10.0 10

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Maximum transmission length: 50m
G = with green-yellow earth core x = without earth core
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
ASEAN2023 ASEAN2023
476 EPLAN download, configurators  www.igus-asean.com/vision 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 477
®
