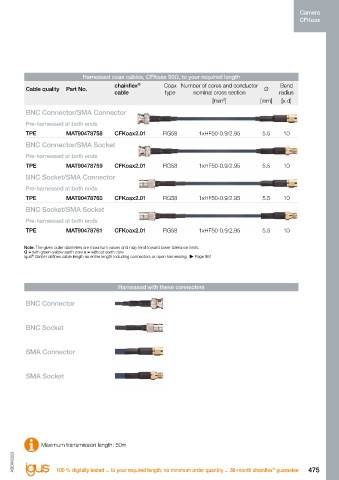

Page 481 - ASEAN Chainflex Catalogue 2023

Camera Camera
CFKoax CFKoax
Harnessed coax cable | CFKoax

* Technical information on the cable quality:
TPE
Page 176

Harnessed coax cables, CFKoax 50Ω, to your required length Harnessed coax cables, CFKoax 50Ω, to your required length
®
chainflex Coax Number of cores and conductor Bend chainflex Coax Number of cores and conductor Bend
®
Cable quality Part No. Ø Cable quality Part No. Ø
cable type nominal cross section radius cable type nominal cross section radius
[mm²] [mm] [x d] [mm²] [mm] [x d]
BNC Connector/Connector BNC Connector/SMA Connector
Pre-harnessed at both ends Pre-harnessed at both ends
TPE MAT90455662 CFKoax2.01 RG58 1xHF50-0.9/2.95 5.5 10 TPE MAT90478758 CFKoax2.01 RG58 1xHF50-0.9/2.95 5.5 10

BNC Connector/Socket BNC Connector/SMA Socket
Pre-harnessed at both ends Pre-harnessed at both ends

TPE MAT90455663 CFKoax2.01 RG58 1xHF50-0.9/2.95 5.5 10 TPE MAT90478759 CFKoax2.01 RG58 1xHF50-0.9/2.95 5.5 10
BNC Socket/Socket BNC Socket/SMA Connector
Pre-harnessed at both ends Pre-harnessed at both ends

TPE MAT90455664 CFKoax2.01 RG58 1xHF50-0.9/2.95 5.5 10 TPE MAT90478760 CFKoax2.01 RG58 1xHF50-0.9/2.95 5.5 10
BNC Connector/open cable end BNC Socket/SMA Socket

Pre-harnessed at one end Pre-harnessed at both ends
TPE MAT90455665 CFKoax2.01 RG58 1xHF50-0.9/2.95 5.5 10 TPE MAT90478761 CFKoax2.01 RG58 1xHF50-0.9/2.95 5.5 10
BNC Socket/open cable end
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
Pre-harnessed at one end G = with green-yellow earth core x = without earth core
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
TPE MAT90455666 CFKoax2.01 RG58 1xHF50-0.9/2.95 5.5 10
SMA Connector/Connector

Pre-harnessed at both ends Harnessed with these connectors
TPE MAT90455667 CFKoax2.01 RG58 1xHF50-0.9/2.95 5.5 10
SMA Connector/Socket BNC Connector

Pre-harnessed at both ends
TPE MAT90455668 CFKoax2.01 RG58 1xHF50-0.9/2.95 5.5 10 BNC Socket
SMA Socket/Socket

Pre-harnessed at both ends SMA Connector
TPE MAT90455669 CFKoax2.01 RG58 1xHF50-0.9/2.95 5.5 10
SMA Connector/open cable end
SMA Socket
Pre-harnessed at one end
TPE MAT90455670 CFKoax2.01 RG58 1xHF50-0.9/2.95 5.5 10

SMA Socket/open cable end
Pre-harnessed at one end
TPE MAT90455671 CFKoax2.01 RG58 1xHF50-0.9/2.95 5.5 10

Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core Maximum transmission length: 50m
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
ASEAN2023 ASEAN2023
474 EPLAN download, configurators  www.igus-asean.com/vision 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 475
®
