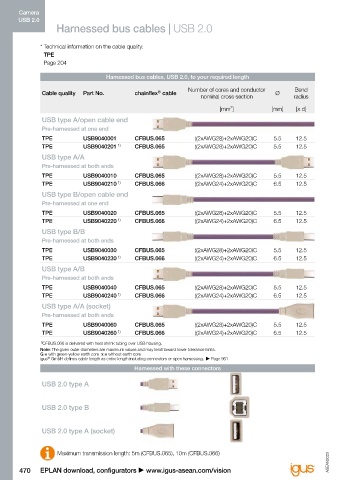

Page 476 - ASEAN Chainflex Catalogue 2023

Camera Camera
USB 2.0 USB 3.0
Harnessed bus cables | USB 2.0 Harnessed bus cables | USB 3.0

* Technical information on the cable quality: * Technical information on the cable quality:
TPE PVC OIL PUR
Page 204 Page 192 Page 200

Harnessed bus cables, USB 2.0, to your required length Harnessed bus cables, USB 3.0, in fixed lengths

Number of cores and conductor Bend Cable chainflex Number of cores and conductor Bend Cable
®
®
Cable quality Part No. chainflex cable Ø Part No. Ø
nominal cross section radius quality cable nominal cross section radius length
[mm²] [mm] [x d] [mm²] [mm] [x d] [m]
USB type A/open cable end USB 3.0 type A/open cable end
Pre-harnessed at one end
Pre-harnessed at one end
TPE USB9040001 CFBUS.065 ((2xAWG28)+2xAWG20)C 5.5 12.5 PVC, oil-res. USB9640200 CFBUS.PVC.068 (2x(2xAWG28)+2x(2xAWG28)C)C 7.0 12.5 3
TPE USB9040201 1) CFBUS.065 ((2xAWG28)+2xAWG20)C 5.5 12.5
PVC, oil-res. USB9640201 CFBUS.PVC.068 (2x(2xAWG28)+2x(2xAWG28)C)C 7.0 12.5 5
USB type A/A PVC, oil-res. USB9640202 CFBUS.PVC.068 (2x(2xAWG28)+2x(2xAWG28)C)C 7.0 12.5 7
Pre-harnessed at both ends PUR USB9540200 CFBUS.PUR.068 (2x(2xAWG28)+2x(2xAWG28)C)C 7.0 12.5 3
TPE USB9040010 CFBUS.065 ((2xAWG28)+2xAWG20)C 5.5 12.5 PUR USB9540201 CFBUS.PUR.068 (2x(2xAWG28)+2x(2xAWG28)C)C 7.0 12.5 5
TPE USB9040210 1) CFBUS.066 ((2xAWG24)+2xAWG20)C 6.5 12.5 PUR USB9540202 CFBUS.PUR.068 (2x(2xAWG28)+2x(2xAWG28)C)C 7.0 12.5 7
USB type B/open cable end USB 3.0 type A/USB 3.0 micro-B
Pre-harnessed at one end Pre-harnessed at both ends
TPE USB9040020 CFBUS.065 ((2xAWG28)+2xAWG20)C 5.5 12.5 PVC, oil-res. USB9640203 CFBUS.PVC.068 (2x(2xAWG28)+2x(2xAWG28)C)C 7.0 12.5 2.5
TPE USB9040220 1) CFBUS.066 ((2xAWG24)+2xAWG20)C 6.5 12.5 PUR USB9540203 CFBUS.PUR.068 (2x(2xAWG28)+2x(2xAWG28)C)C 7.0 12.5 2.5
USB type B/B Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
Pre-harnessed at both ends G = with green-yellow earth core x = without earth core
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
TPE USB9040030 CFBUS.065 ((2xAWG28)+2xAWG20)C 5.5 12.5
TPE USB9040230 1) CFBUS.066 ((2xAWG24)+2xAWG20)C 6.5 12.5
Maximum transmission length: 3m
USB type A/B *igus GmbH was able to successfully implement customer applications with excess length. Try us out!
®
Pre-harnessed at both ends
TPE USB9040040 CFBUS.065 ((2xAWG28)+2xAWG20)C 5.5 12.5
TPE USB9040240 1) CFBUS.066 ((2xAWG24)+2xAWG20)C 6.5 12.5
USB type A/A (socket)
Pre-harnessed at both ends
TPE USB9040060 CFBUS.065 ((2xAWG28)+2xAWG20)C 5.5 12.5
TPE USB9040260 1) CFBUS.066 ((2xAWG24)+2xAWG20)C 6.5 12.5

1) CFBUS.066 is delivered with heat shrink tubing over USB housing.
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®
Harnessed with these connectors Harnessed with these connectors

USB 2.0 type A USB 3.0 type A

USB 2.0 type B USB 3.0 type micro-B

USB 2.0 type A (socket)

Maximum transmission length: 5m (CFBUS.065), 10m (CFBUS.066)

470 EPLAN download, configurators  www.igus-asean.com/vision ASEAN2023 ASEAN2023 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 471
®
