Camera Camera
GigE DVI/HDMI

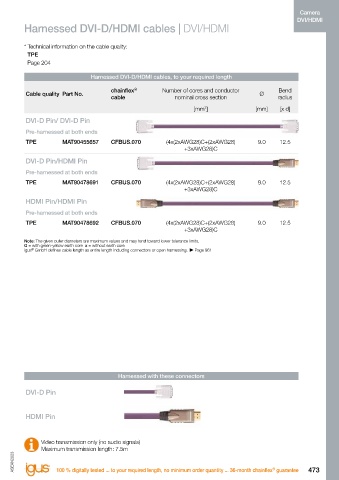

Harnessed bus cables | GigE Harnessed DVI-D/HDMI cables | DVI/HDMI

* Technical information on the cable quality: * Technical information on the cable quality:
PUR-ROBOT TPE TPE
Page 410 Page 204 Page 204

Harnessed bus cables, GigE, to your required length Harnessed DVI-D/HDMI cables, to your required length

chainflex Number of cores and conductor Bend chainflex Number of cores and conductor Bend
®
®
Cable quality Part No. Ø Cable quality Part No. Ø
cable nominal cross section radius cable nominal cross section radius
[mm²] [mm] [x d] [mm²] [mm] [x d]
RJ45 metal/RJ45 metal DVI-D Pin/ DVI-D Pin
Pre-harnessed at both ends Pre-harnessed at both ends
TPE GIG9040001 CFBUS.045 (4x(2x0.15))C 8.5 10 TPE MAT90455657 CFBUS.070 (4x(2xAWG28)C+(2xAWG28) 9.0 12.5
PUR-ROBOT GIG9045001 CFROBOT8.045 4x(2x0.15)C 9.5 10 +3xAWG28)C
RJ45 metal/RJ45 plastic DVI-D Pin/HDMI Pin

Pre-harnessed at both ends Pre-harnessed at both ends
TPE GIG9040002 CFBUS.045 (4x(2x0.15))C 8.5 10 TPE MAT90478691 CFBUS.070 (4x(2xAWG28)C+(2xAWG28) 9.0 12.5
PUR-ROBOT GIG9045002 CFROBOT8.045 4x(2x0.15)C 9.5 10 +3xAWG28)C
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. HDMI Pin/HDMI Pin
G = with green-yellow earth core x = without earth core
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
Pre-harnessed at both ends
TPE MAT90478692 CFBUS.070 (4x(2xAWG28)C+(2xAWG28) 9.0 12.5
+3xAWG28)C
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
®

Harnessed with these connectors Harnessed with these connectors

RJ45 metal DVI-D Pin

RJ45 plastic, knurled screws HDMI Pin

Maximum transmission length: 50m Video transmission only (no audio signals)
Maximum transmission length: 7.5m
ASEAN2023 ASEAN2023

472 EPLAN download, configurators  www.igus-asean.com/vision 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 473
®
