Camera Camera
FireWire FireWire
Harnessed bus cable | FireWire

* Technical information on the cable quality:
TPE
Page 204

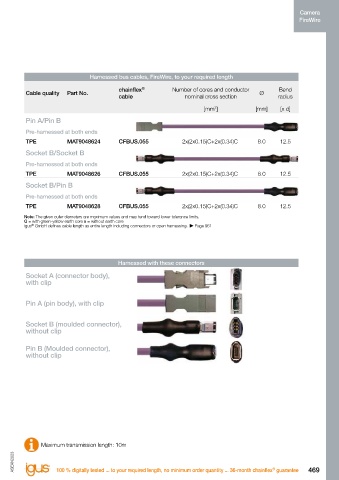

Harnessed bus cables, FireWire, to your required length Harnessed bus cables, FireWire, to your required length

chainflex Number of cores and conductor Bend chainflex Number of cores and conductor Bend
®
®
Cable quality Part No. Ø Cable quality Part No. Ø
cable nominal cross section radius cable nominal cross section radius
[mm²] [mm] [x d] [mm²] [mm] [x d]
Socket A/Socket A Pin A/Pin B
Pre-harnessed at both ends Pre-harnessed at both ends
TPE MAT9048160 CFBUS.055 2x(2x0.15)C+2x(0.34)C 8.0 12.5 TPE MAT9048624 CFBUS.055 2x(2x0.15)C+2x(0.34)C 8.0 12.5

Socket A/Pin A Socket B/Socket B
Pre-harnessed at both ends Pre-harnessed at both ends
TPE MAT9048621 CFBUS.055 2x(2x0.15)C+2x(0.34)C 8.0 12.5 TPE MAT9048626 CFBUS.055 2x(2x0.15)C+2x(0.34)C 8.0 12.5

Socket A/Socket B Socket B/Pin B
Pre-harnessed at both ends Pre-harnessed at both ends
TPE MAT9048623 CFBUS.055 2x(2x0.15)C+2x(0.34)C 8.0 12.5 TPE MAT9048628 CFBUS.055 2x(2x0.15)C+2x(0.34)C 8.0 12.5

Socket A/Pin B Note: The given outer diameters are maximum values and may tend toward lower tolerance limits.
G = with green-yellow earth core x = without earth core
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961
Pre-harnessed at both ends
TPE MAT9048625 CFBUS.055 2x(2x0.15)C+2x(0.34)C 8.0 12.5
Pin B/Pin B
Pre-harnessed at both ends Harnessed with these connectors

TPE MAT9048627 CFBUS.055 2x(2x0.15)C+2x(0.34)C 8.0 12.5
Socket A (connector body),
Pin A/Pin A with clip

Pre-harnessed at both ends
TPE MAT9048620 CFBUS.055 2x(2x0.15)C+2x(0.34)C 8.0 12.5 Pin A (pin body), with clip
Pin A/Socket B

Pre-harnessed at both ends Socket B (moulded connector),
without clip
TPE MAT9048622 CFBUS.055 2x(2x0.15)C+2x(0.34)C 8.0 12.5
Note: The given outer diameters are maximum values and may tend toward lower tolerance limits. Pin B (Moulded connector),
G = with green-yellow earth core x = without earth core
®
igus GmbH defines cable length as entire length including connectors or open harnessing. Page 961 without clip

Maximum transmission length: 10m
ASEAN2023 ASEAN2023

468 EPLAN download, configurators  www.igus-asean.com/vision 100 % digitally tested ... to your required length, no minimum order quantity ... 36-month chainflex guarantee 469
®
