Page 470 - ASEAN Chainflex Catalogue 2023

CFCleanAIR CFCleanAIR
PE PE
10 x d 10 x d

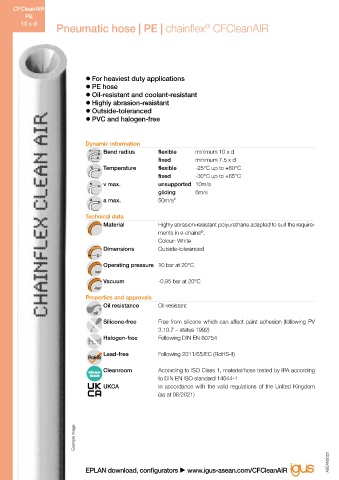

Pneumatic hose | PE | chainflex CFCleanAIR
®

Max. package Inner Wall Outer diameter
Part No. Weight
length diameter thickness (d) max.
[km] [mm] [mm] [mm] [g/m]
CAPE.A.04.0 1.0 2.7 0.65 4.0 8
z For heaviest duty applications CAPE.A.06.0 0.5 4.0 1.00 6.0 15
z PE hose CAPE.A.08.0 0.5 5.7 1.15 8.0 21
z Oil-resistant and coolant-resistant CAPE.A.10.0 0.3 7.0 1.5 10.0 38
z Highly abrasion-resistant CAPE.A.12.0 0.2 8.0 2.00 12.0 54
z Outside-toleranced CAPE.A.16.0 0.1 11.0 2.50 16.0 90
z PVC and halogen-free

Dynamic information
Bend radius flexible minimum 10 x d
fixed minimum 7.5 x d
Temperature flexible -25°C up to +60°C
fixed -30°C up to +65°C
v max. unsupported 10m/s
gliding 6m/s
a max. 50m/s²

Technical data
Material Highly abrasion-resistant polyurethane adapted to suit the require-
ments in e-chains .
®
Colour: White
Dimensions Outside-toleranced

Operating pressure 10 bar at 20°C igus material abrasion test
®

Vacuum -0.95 bar at 20°C
Comparison: Abrasion of pneumatic hoses PUR, PE und PA in combination with igus e-chain (with crossbar 450.30)
®
®
Properties and approvals
Oil resistance Oil-resistant

Silicone-free Free from silicone which can affect paint adhesion (following PV
3.10.7 – status 1992)
Halogen-free Following DIN EN 60754

Lead-free Following 2011/65/EC (RoHS-II) PUR hose

PA hose
Cleanroom According to ISO Class 1, material/hose tested by IPA according Abrasion in mm PE hose 10x1.5
to DIN EN ISO standard 14644-1
UKCA In accordance with the valid regulations of the United Kingdom
(as at 08/2021)

Example image Double strokes

ASEAN2023 ASEAN2023

464 EPLAN download, configurators  www.igus-asean.com/CFCleanAIR 36-month guarantee ... 1,354 types from stock ... no cutting charges 465
